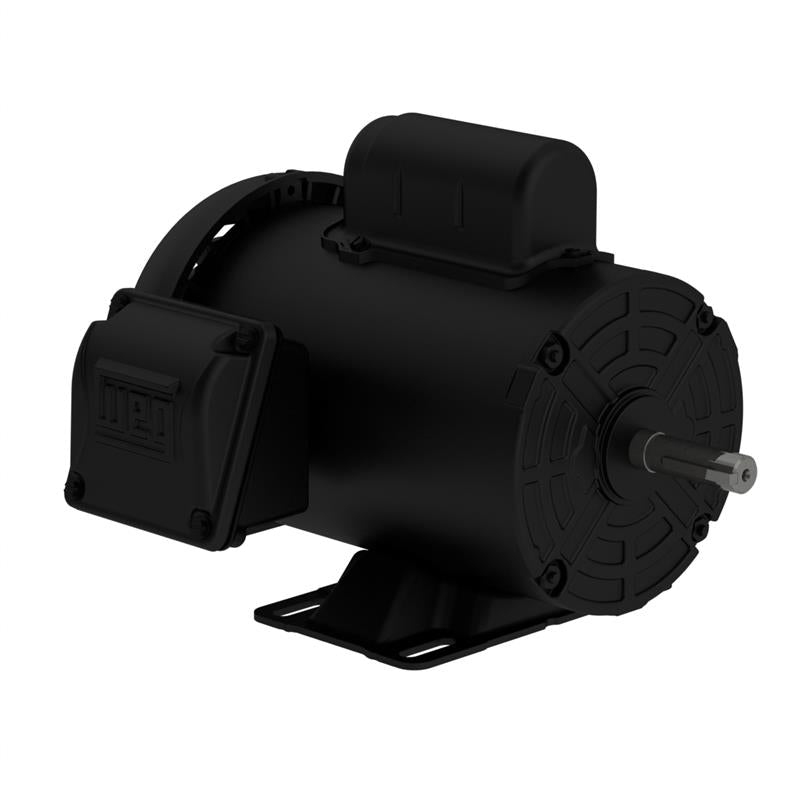

00236ES1B56-S WEG General Purpose Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount)
00236ES1B56-S WEG General Purpose Motor (2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount)
No reviews
SKU:00236ES1B56-S
Regular price
$408.83 USD
Regular price
Sale price
$408.83 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00236ES1B56-S, General Purpose Motor, 2 HP, 3600 RPM, 1 Phase, 56H Frame, TEFC, 115/208-230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
Specifications | |
Brand |
WEG |
Catalog Number |
00236ES1B56-S |
Type |
General Purpose Motor |
HP |
2 |
RPM |
3600 |
Phase |
1 |
Frame |
56H |
Service Factor |
1.15 |
Enclosure |
TEFC |
Voltage |
115/208-230 |
Motor Mount |
Foot Mount |
Full Load Efficiency |
77 |
Full Load AMPS |
8.7 |
"C" Dimension |
14.295 |
Warranty |
1 Year |
