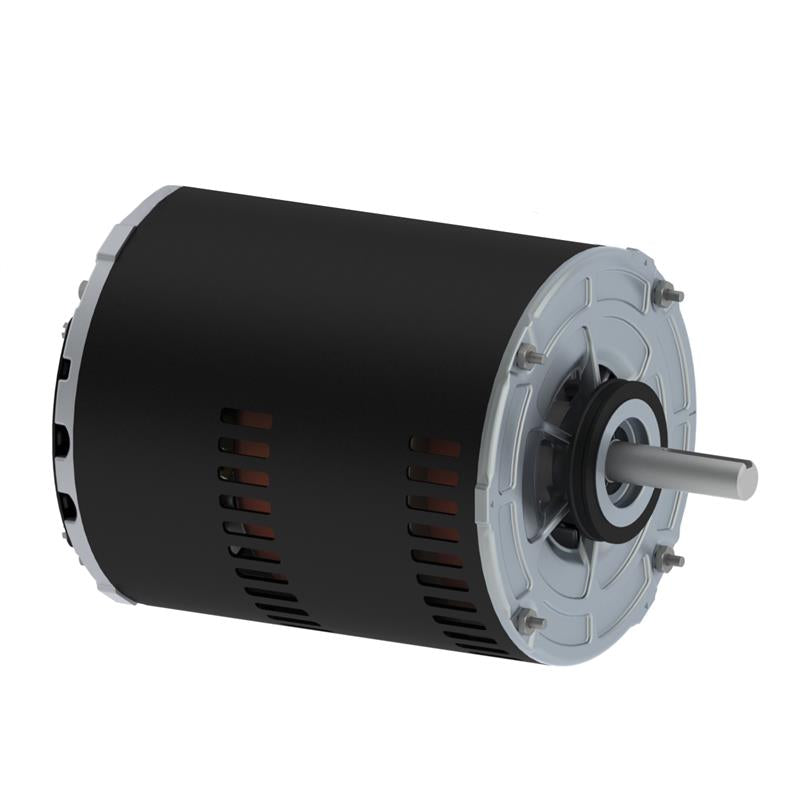

00182OS1DEC56 WEG Motor (36160 HP, 1800/1200 RPM, Single Phase, 56 Frame, ODP Enclosure, 240 Voltage)

WEG 00182OS1DEC56, Commercial HVAC Motors Series, 36160 HP, 0.75/0.25 KW, 1800/1200 RPM, Single Phase, 56 Frame, ODP Enclosure, Belly Mount Motor Mount, 240 Voltage

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications
Brand	WEG
Catalog Number	00182OS1DEC56
Type	Air Handling Motor
Series	Commercial HVAC Motors
HP	36160
KW	0.75/0.25
RPM	1800/1200
Phase	Single
C-Dimentions	10.96
Service Factor	1
Frame	56
Enclosure	ODP
Full Load Amps	6.45/3.06
Motor Mount	Belly Mount
Voltage	240
Warranty	1 Year

Support Documents (pdf)
