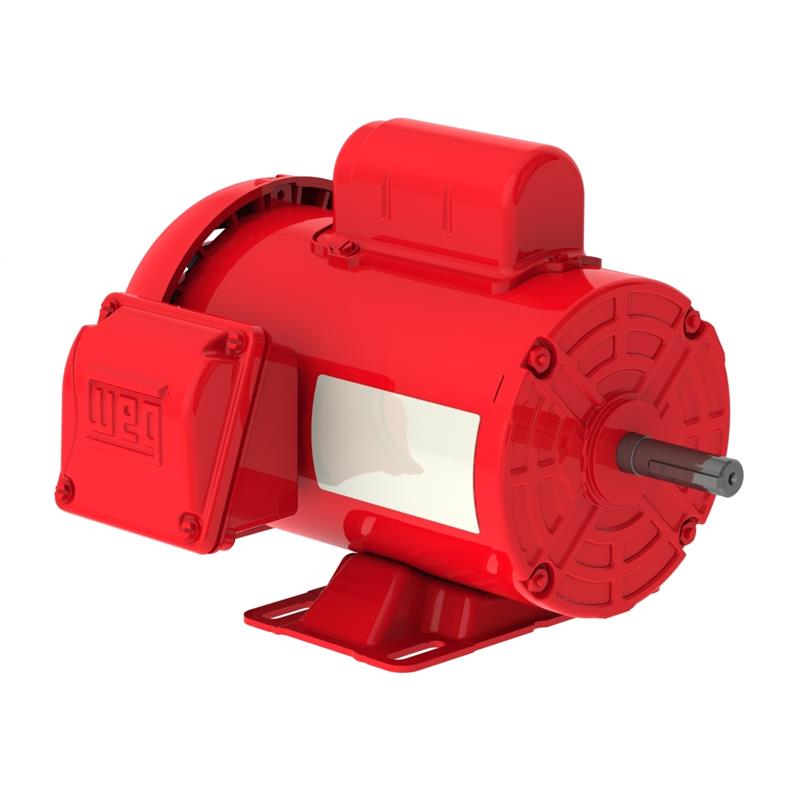

00158ES1RFD145T-S WEG General Purpose Motor (1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount)
00158ES1RFD145T-S WEG General Purpose Motor (1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00158ES1RFD145T-S
Regular price
$448.56 USD
Regular price
$504.00 USD
Sale price
$448.56 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00158ES1RFD145T-S, General Purpose Motor, 1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
Specifications | |
Brand |
WEG |
Catalog Number |
00158ES1RFD145T-S |
Type |
General Purpose Motor |
HP |
1.5 |
RPM |
1800 |
Phase |
1 |
Frame |
143/5T |
Service Factor |
1.15 |
Enclosure |
TEFC |
Voltage |
115/230 |
Motor Mount |
Foot Mount |
Full Load Efficiency |
77 |
Full Load AMPS |
7.48 |
"C" Dimension |
15.083 |
Warranty |
1 Year |
Support Documents (pdf) |
