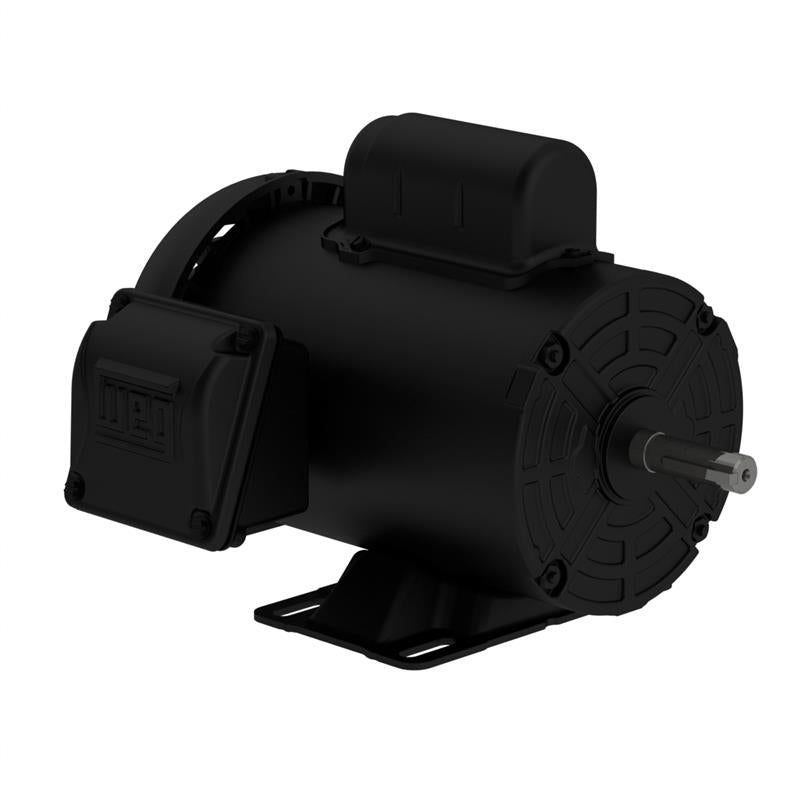

• 00158ES1B145T-S WEG General Purpose Motor (1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount) - KG Power Systems
1 1

WEG

00158ES1B145T-S WEG General Purpose Motor (1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount)

00158ES1B145T-S WEG General Purpose Motor (1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount)

[COUNT] shoppers are looking at this right now

00158ES1B145T-S

$544.68 USD
$612.00 USD $544.68 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG 00158ES1B145T-S, General Purpose Motor, 1.5 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/208-230 Voltage, Foot Mount

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications

Brand
WEG
Catalog Number
00158ES1B145T-S
Type
General Purpose Motor
HP
1.5
RPM
1800
Phase
1
Frame
143/5T
Service Factor
1.15
Enclosure
TEFC
Voltage
115/208-230
Motor Mount
Foot Mount
Full Load Efficiency
77
Full Load AMPS
7.5
"C" Dimension
15.152
Warranty
1 Year

Support Documents (pdf)
