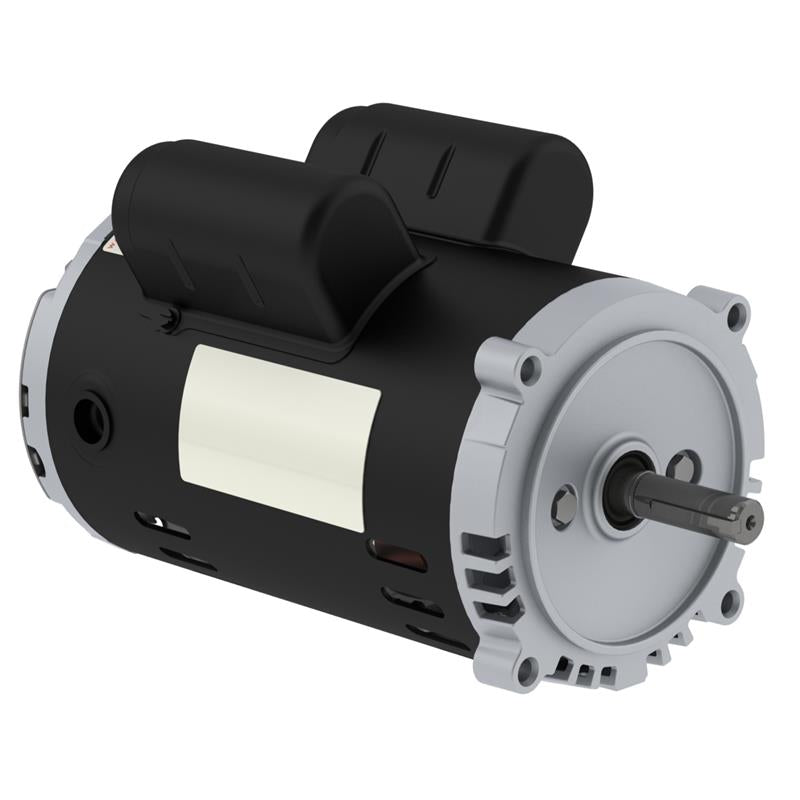

00156OT1BO56CFL-S WEG Motor (1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, ODP, 115/208-230 V)
00156OT1BO56CFL-S WEG Motor (1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, ODP, 115/208-230 V)
SKU:00156OT1BO56CFL-S
Regular price
$319.19 USD
Regular price
Sale price
$319.19 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00156OT1BO56CFL-S, 1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, Footless, ODP, 115/208-230 V
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00156OT1BO56CFL-S |
Type |
General Purpose Motor |
Series |
C-Face Motor |
HP |
1.5 |
RPM |
3600 |
Phase |
1 |
Hertz |
60 |
Frame |
56C |
Mounting |
Footless |
Enclosure |
ODP |
Voltage |
115/208-230 |
Full Load Amps |
6.2 |
Full Load Efficiency |
81.5 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
12.284 |
Warranty |
1 Year |
