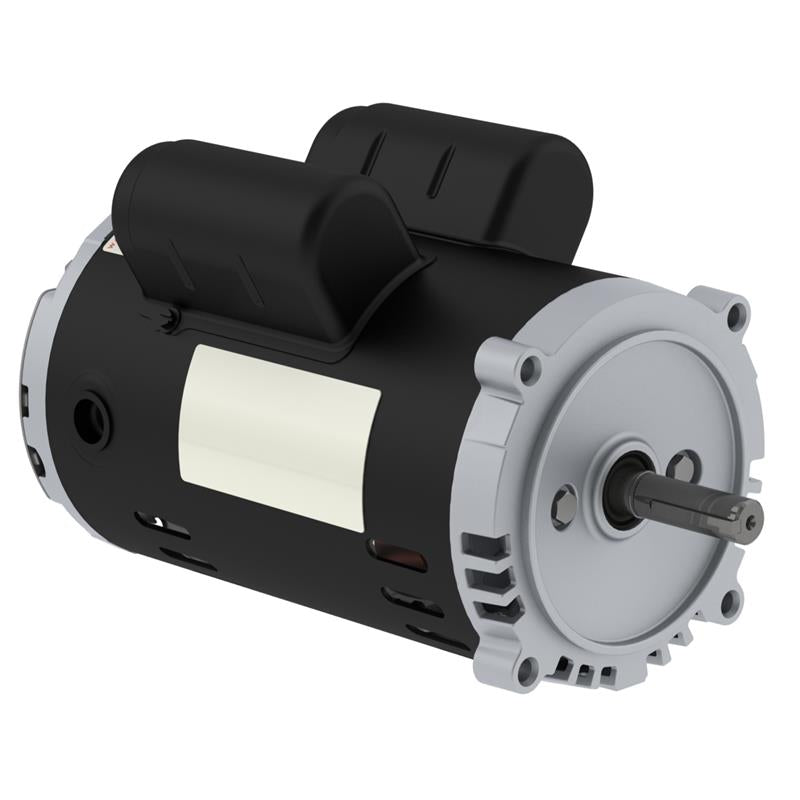

00156OT1B56CFL-S WEG General Purpose Motor (1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, ODP Enclosure, 115/208-230 Volt, Footless)
00156OT1B56CFL-S WEG General Purpose Motor (1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, ODP Enclosure, 115/208-230 Volt, Footless)
[COUNT] shoppers are looking at this right now
SKU:00156OT1B56CFL-S
Regular price
$374.69 USD
Regular price
$421.00 USD
Sale price
$374.69 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00156OT1B56CFL-S, 1.5 HP, 3600 RPM, 1 Phase, 60 Hz, 56C Frame, Footless, ODP, 115/208-230 V
| Applications |
| High Starting Torque makes these motors ideal for a wide range of applications. |
| Features |
| High Starting Torque |
| 182T frames and up are cast iron for severe duty |
| NPT Threaded Holes in Terminal Box |
| Class F insulation |
| V-ring Seals |
| Class F insulation |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
00156OT1B56CFL-S
|
|
Type
|
General Purpose Motor
|
|
Series
|
C-Face Motor
|
|
HP
|
1.5
|
|
RPM
|
3600
|
|
Phase
|
1
|
|
Hertz
|
60
|
|
Frame
|
56C
|
|
Mounting
|
Footless
|
|
Enclosure
|
ODP
|
|
Voltage
|
115/208-230
|
|
Full Load Amps
|
6.2
|
|
Full Load Efficiency
|
81.5
|
|
Frame Material
|
Rolled Steel
|
|
Service Factor
|
1.15
|
|
"C" Dimensions
|
12.284
|
|
Warranty
|
1 Year
|
|
