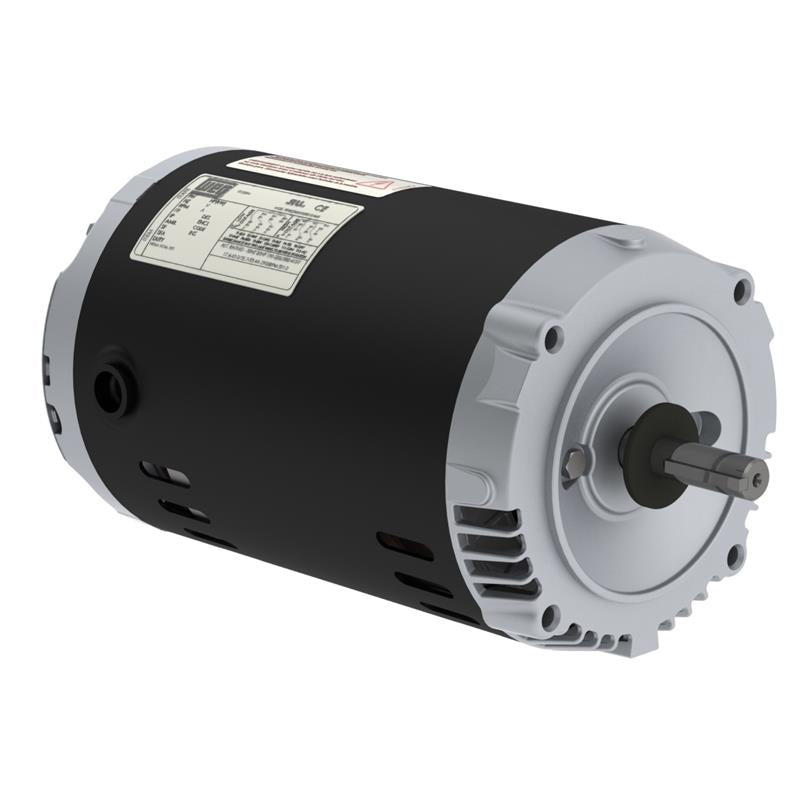

00156OS3EJPR56C-S WEG Jet Pump Motor (1.5 HP, D56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3400 RPM)

00156OS3EJPR56C-S WEG Jet Pump Motor (1.5 HP, D56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3400 RPM)

00156OS3EJPR56C-S

$211.34 USD
$211.34 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00156OS3EJPR56C-S, 1.5 HP , 3400 RPM, D56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , ODP , Jet Pump Motor
Applications
Features
Jet Pump Motor, 3-Phase, Rolled Steel, Standard Efficiency, TEFC & ODP

Tech Specs

Brand
WEG Motors
Model Number
00156OS3EJPR56C
HP
1.5 HP
RPM
3400
FRAME
D56
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
32
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
4.50-4.26/2.13 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
25.5/12.8 A
LOCKED ROTOR TORQUE
2.2
BREAKDOWN TORQUE
2.3
EFFICIENCY 50
74
EFFICIENCY 75
76
EFFICIENCY 100
76
POWER FACTOR 50
0.69
POWER FACTOR 75
0.81
POWER FACTOR 100
0.87
SERVICE FACTOR
1.30 (1.00 at 208V)
INERTIA KGM2
0.00128 kgm
INERTIA SQ FT
0.03037 sq.ft.
LOCKED ROTOR TIME
10 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
2.10/1.05 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
3.10 Nm
FULL LOAD TORQUE FT
2.29 .ft
SLIP
0.0556
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
6204 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
