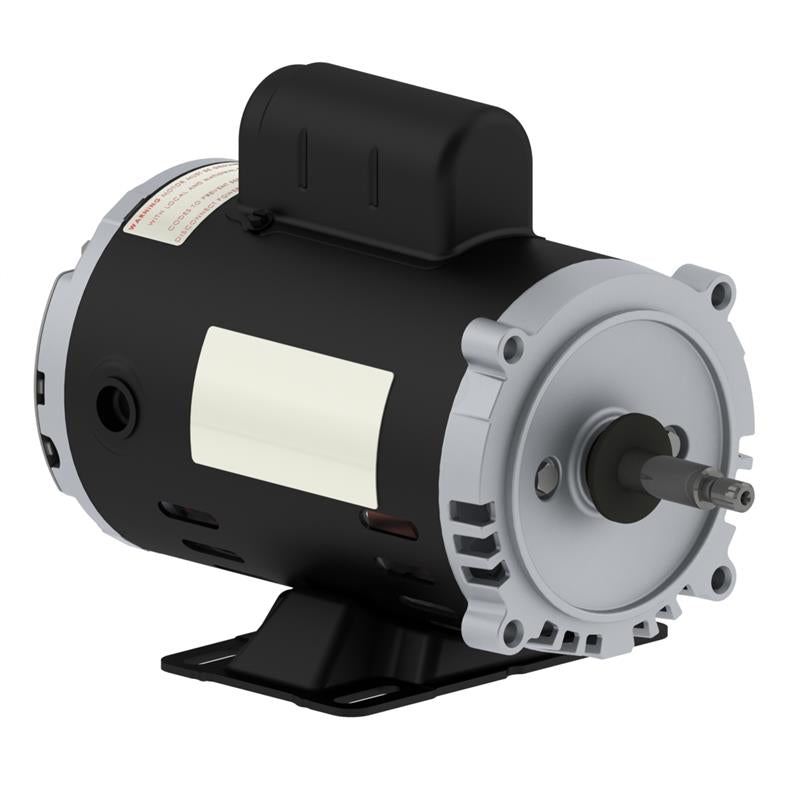

00156OS1BJP56J-S WEG Motor, Jet Pump (1.5 HP, E56 FRAME, 115/208-230 V, SINGLE PHASE, ODP , 3480 RPM)
00156OS1BJP56J-S WEG Motor, Jet Pump (1.5 HP, E56 FRAME, 115/208-230 V, SINGLE PHASE, ODP , 3480 RPM)
No reviews
SKU:00156OS1BJP56J-S
Regular price
$278.39 USD
Regular price
Sale price
$278.39 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG Motor 00156OS1BJP56J-S, 1.5 HP , 3480 RPM, E56 FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , ODP , Jet Pump Motor
| Applications |
| The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications. |
| Features |
| Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, ODP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
00156OS1BJP56J-S |
HP |
1.5 HP |
RPM |
3480 |
FRAME |
E56 |
VOLTAGE |
115/208-230 V |
PHASE |
SINGLE |
FREQUENCY |
60 Hz |
ENCLOSURE |
ODP |
APPROXIMATE WEIGHT (lb) |
36 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
FC-149 |
RATED CURRENT |
16.4/8.50-8.20 A |
LOCKED ROTOR CURRENT IL IN |
6.9 |
LOCKED ROTOR CURRENT |
113/56.6 A |
LOCKED ROTOR TORQUE |
3 |
BREAKDOWN TORQUE |
2.4 |
EFFICIENCY 50 |
67.4 |
EFFICIENCY 75 |
72.6 |
EFFICIENCY 100 |
73.2 |
POWER FACTOR 50 |
0.62 |
POWER FACTOR 75 |
0.72 |
POWER FACTOR 100 |
0.8 |
SERVICE FACTOR |
1.30 (1.00 at 208V) |
INERTIA KGM2 |
0.00175 kgm |
INERTIA SQ FT |
0.04153 sq.ft. |
LOCKED ROTOR TIME |
6 s |
NOISE LEVEL |
- |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP21 |
NO-LOAD CURRENT |
9.40/4.70 A |
INSULATION CLASS |
B |
FULL LOAD TORQUE NM |
3.03 Nm |
FULL LOAD TORQUE FT |
2.23 .ft |
SLIP |
0.0333 |
DESIGN |
- |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6203 2RS |
BEARINGS N D E |
6203 2RS |
REGREASING INTERVAL D E |
- |
REGREASING INTERVAL N D E |
- |
GREASE AMOUNT D E |
- |
GREASE AMOUNT N D E |
- |
