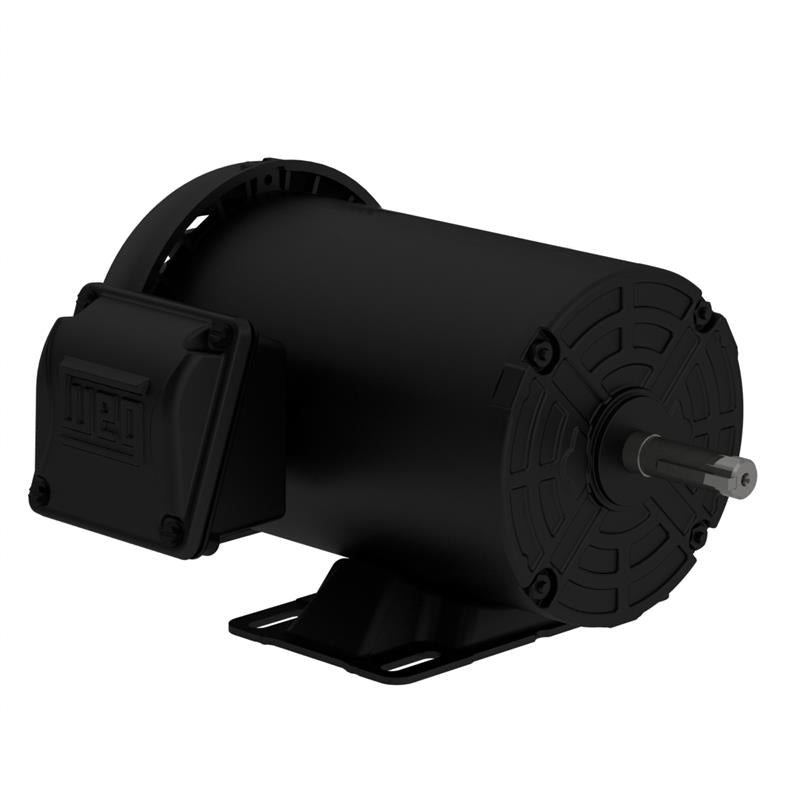

00156ET3E56-S WEG Motor (1.5 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, TEFC, 230/460 V)
00156ET3E56-S WEG Motor (1.5 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, TEFC, 230/460 V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00156ET3E56-S
Regular price
$0.00 USD
Regular price
$433.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00156ET3E56-S, 1.5 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, Foot-mounted, TEFC, 230/460 V
| Applications | |
| General Application | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 to 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| F1 mount as standard | |
| Aluminum endshields | |
| New ventilation system for improved thermal performance | |
| Robust foot design suitable for tougher applications | |
| IP55 Ingress protection as standard, being appropriate for severe environments | |
| Terminal box rotatable in 90 degrees | |
Specifications | |
Brand |
WEG |
Catalog Number |
00156ET3E56-S |
Type |
General Purpose Motor |
HP |
1.5 |
RPM |
3600 |
Phase |
3 |
Hertz |
60 |
Frame |
56 |
Mounting |
Foot-mounted |
Enclosure |
TEFC |
Voltage |
230/460 |
Full Load Amps |
1.9 |
Full Load Efficiency |
84 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
13.109 |
Number of Poles |
2-6 |
Motor Efficiency Group |
NEMA Premium Efficient |
Warranty |
1 Year |
Support Documents (pdf) |
