WEG

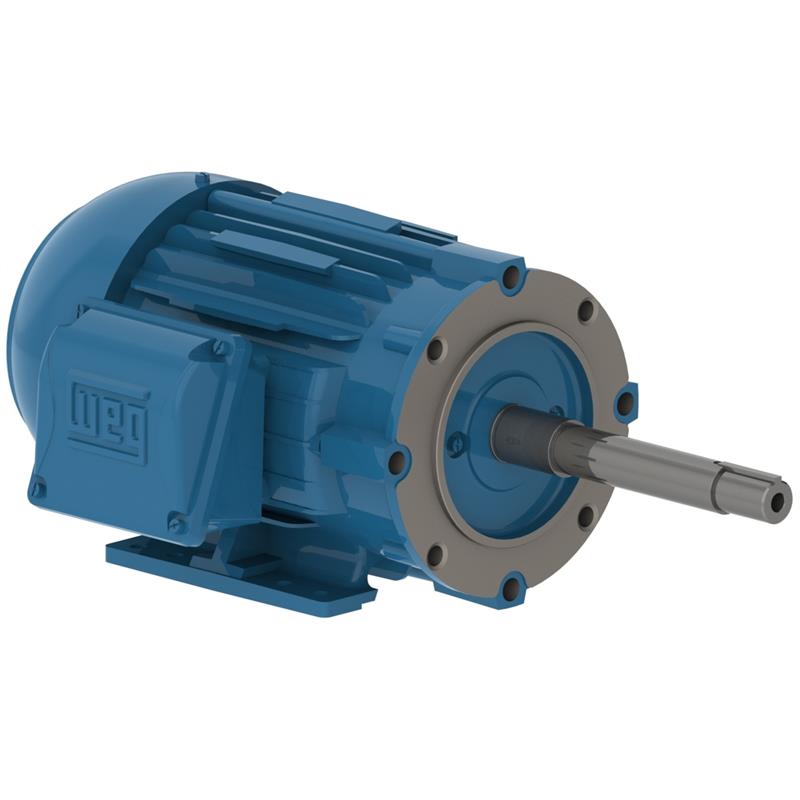

00156ET3E143JP-W22 WEG Motor, Close Coupled Pump (1.5 HP, 143JP FRAME, 460 V, THREE PHASE, TEFC , 3490 RPM)

00156ET3E143JP-W22 WEG Motor, Close Coupled Pump (1.5 HP, 143JP FRAME, 460 V, THREE PHASE, TEFC , 3490 RPM)

00156ET3E143JP-W22

$472.96 USD
$472.96 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 00156ET3E143JP-W22, 1.5 HP, RPM: 3490, FRAME: 143JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
00156ET3E143JP-W22
HP
1.5 HP
RPM
3490
FRAME
143JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
41
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
1.91 A
LOCKED ROTOR CURRENT IL IN
8.9
LOCKED ROTOR CURRENT
17.0 A
LOCKED ROTOR TORQUE
3.5
BREAKDOWN TORQUE
3.8
EFFICIENCY 50
81.5
EFFICIENCY 75
84
EFFICIENCY 100
84
POWER FACTOR 50
0.72
POWER FACTOR 75
0.82
POWER FACTOR 100
0.86
SERVICE FACTOR
1.25
INERTIA KGM2
0.00198 kgm
INERTIA SQ FT LB
0.04699 sq.ft.
LOCKED ROTOR TIME
21 s
NOISE LEVEL
68 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
0.750 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
3.02 Nm
FULL LOAD TORQUE LB FT
2.23 .ft
SLIP
0.0306
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6206 ZZ
BEARINGS N D E
6204 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
