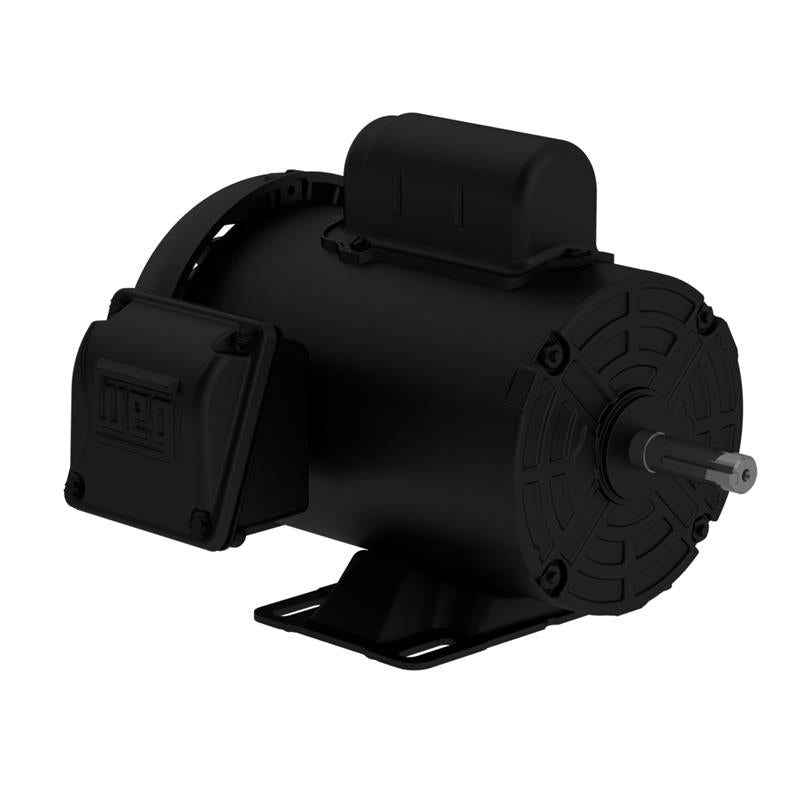

00156ES1B56-S WEG General Purpose Motor (1.5 HP, 3600 RPM, 1 Phase, 56 Frame, TEFC, 115/208-230 Voltage, Foot Mount)

00156ES1B56-S WEG General Purpose Motor (1.5 HP, 3600 RPM, 1 Phase, 56 Frame, TEFC, 115/208-230 Voltage, Foot Mount)

SKU:00156ES1B56-S

Regular price $314.83 USD
Regular price Sale price $314.83 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00156ES1B56-S, General Purpose Motor, 1.5 HP, 3600 RPM, 1 Phase, 56 Frame, TEFC, 115/208-230 Voltage, Foot Mount

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications

Brand
WEG
Catalog Number
00156ES1B56-S
Type
General Purpose Motor
HP
1.5
RPM
3600
Phase
1
Frame
56
Service Factor
1.15
Enclosure
TEFC
Voltage
115/208-230
Motor Mount
Foot Mount
Full Load Efficiency
75
Full Load AMPS
6.6
"C" Dimension
13.902
Warranty
1 Year
