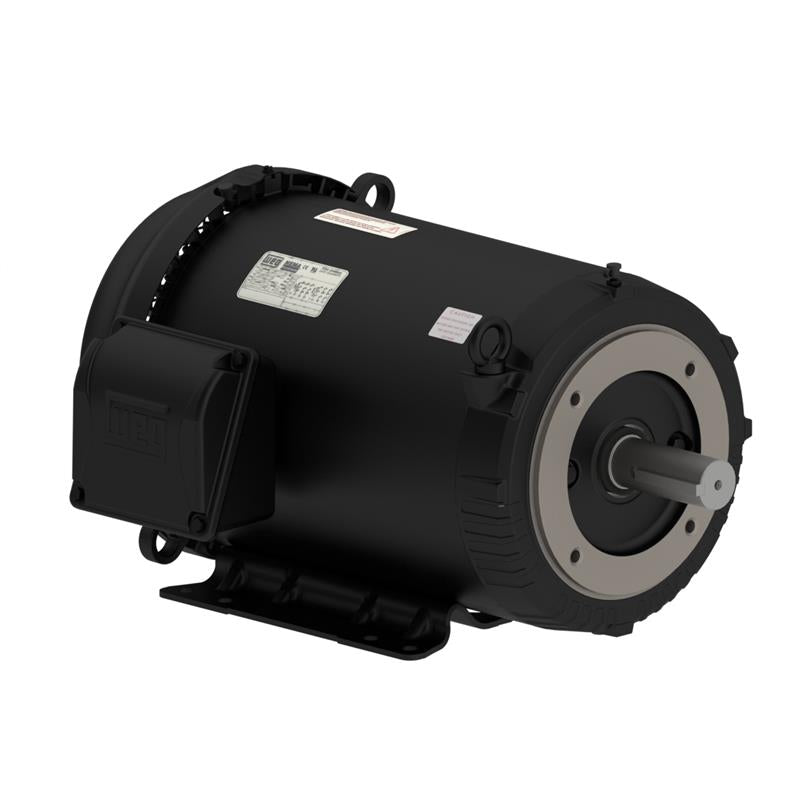

00136ET3HW56C-S WEG Motor (1 HP, 3600 RPM, 3 Phase, 60 Hz, W56C, Foot Mount, TEFC, 575 V)

00136ET3HW56C-S WEG Motor (1 HP, 3600 RPM, 3 Phase, 60 Hz, W56C, Foot Mount, TEFC, 575 V)

00136ET3HW56C-S

$306.08 USD
$306.08 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00136ET3HW56C-S, 1 HP, 3600 RPM, 3 Phase, 60 Hz, W56C, Foot Mount, TEFC, 575 V

Applications
General Purpose Motor
Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 to 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
F1 mount as standard
New ventilation system for improved thermal performance
IP55 Ingress Protection as standard, being appropriate for severe environments
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Color coded/numbered leads as standard for easy wiring
New and more robust eyebolts design (frames 182/4T and up) plus an additional eyebolt on non-drive end allowing vertical shaft down lifting for frames 213/5T and 254/6T

Specifications

Brand
WEG
Catalog Number
00136ET3HW56C-S
Type
General Purpose Motor
HP
1
RPM
3600
Phase
3
Frame
W56C
Mounting
Foot Mount
Enclosure
TEFC
Voltage
575
FL Amps
1.2
FL Efficiency
78.5
Construction
Rolled Steel
Service Factor
1.15
"C" Dimensions
11.106
Drive End Flange Type
C-Face
Warranty
1 Year
