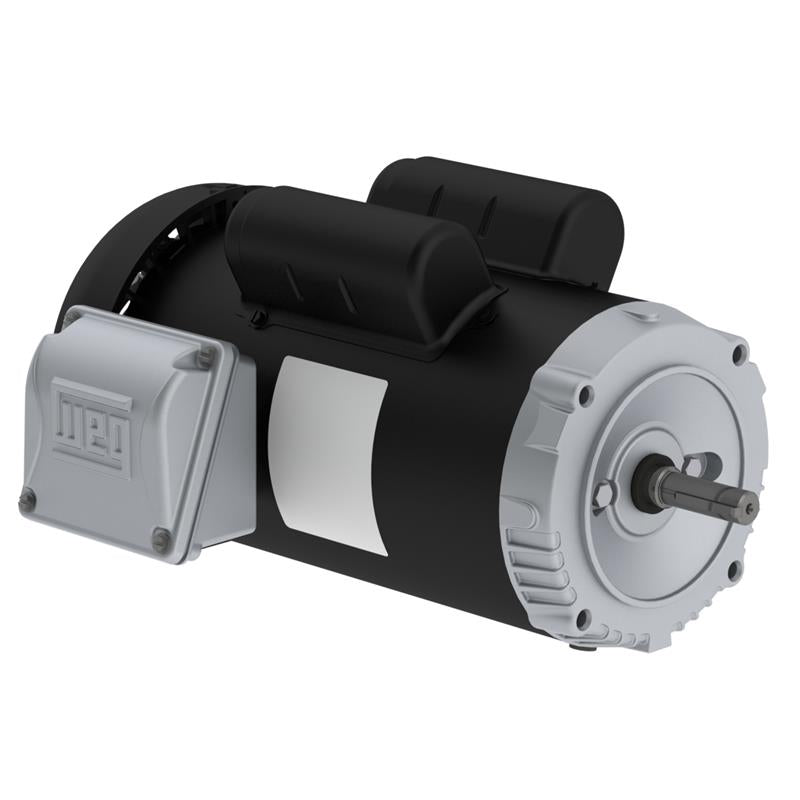

00136ES1BJPR56J-S WEG Jet Pump Motor (1 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3500 RPM)

00136ES1BJPR56J-S WEG Jet Pump Motor (1 HP, D56 FRAME, 115/208-230 V, SINGLE PHASE, TEFC , 3500 RPM)

[COUNT] shoppers are looking at this right now

00136ES1BJPR56J-S

$0.00 USD
$386.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG Motor 00136ES1BJPR56J-S, 1 HP , 3500 RPM, D56 FRAME, 115/208-230 V , SINGLE PHASE, 60 Hz , TEFC , Jet Pump Motor
Applications
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
Features
Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
00136ES1BJPR56J-S
HP
1 HP
RPM
3500
FRAME
D56
VOLTAGE
115/208-230 V
PHASE
SINGLE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
33
FEET
NO
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
12.8/6.40-6.40 A
LOCKED ROTOR CURRENT IL IN
7
LOCKED ROTOR CURRENT
89.6/44.8 A
LOCKED ROTOR TORQUE
3.2
BREAKDOWN TORQUE
2.8
EFFICIENCY 50
55
EFFICIENCY 75
63
EFFICIENCY 100
67
POWER FACTOR 50
0.56
POWER FACTOR 75
0.67
POWER FACTOR 100
0.75
SERVICE FACTOR
1.15 (1.00 at 208V)
INERTIA KGM2
0.00217 kgm
INERTIA SQ FT
0.05149 sq.ft.
LOCKED ROTOR TIME
6 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
9.00/4.50 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
2.01 Nm
FULL LOAD TORQUE FT
1.48 .ft
SLIP
0.0278
DESIGN
-
TEMPERATURE RISE
80 K
BEARINGS D E
6204 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
