WEG

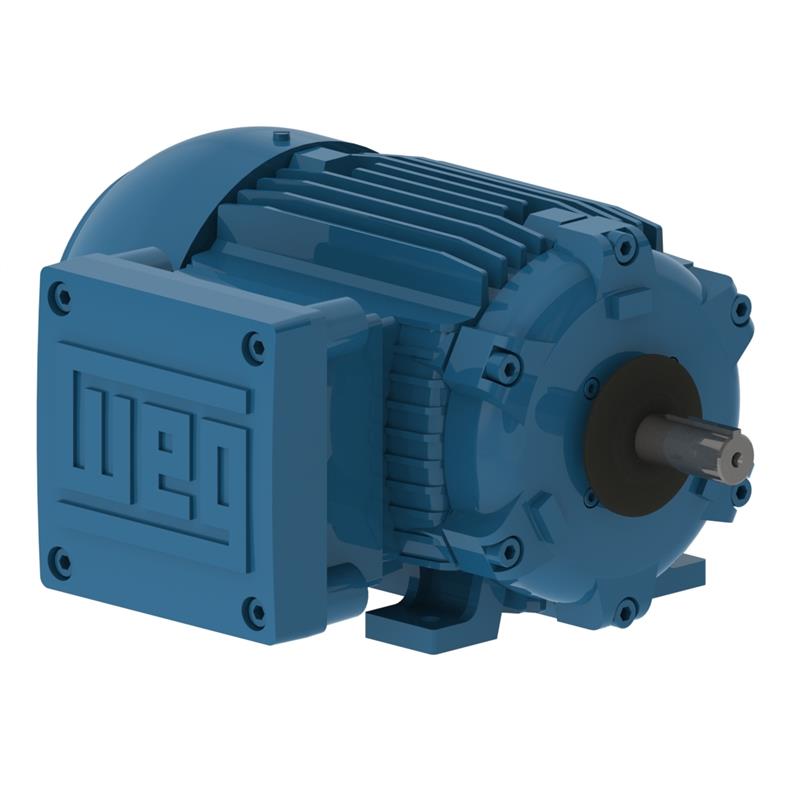

00118XT3E143T WEG Explosion Proof Motor (1 HP, 1800 RPM, 3 Phase, 143T Frame, 208-230/460 Voltage, Explosion Proof)

00118XT3E143T WEG Explosion Proof Motor (1 HP, 1800 RPM, 3 Phase, 143T Frame, 208-230/460 Voltage, Explosion Proof)

SKU:00118XT3E143T

Regular price $656.60 USD
Regular price Sale price $656.60 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00118XT3E143T, Series, 1 HP, 0.75 KW, 1800 RPM, 3 Phase, 143T Frame, 208-230/460 Voltage, Explosion Proof

Applications
WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations.
Features
Class F insulation (Impregnation Resin and Magnet wire are class H)
F1 Mounted (Cast Iron frames are F2 convertible)
Stainless Steel Nameplate - Laser etched with high contrast background
All frames with regreasable ball bearings (Frames 364T and up)
CSA Approved - File LR50962
UL Listed - File E87848

Specifications

Brand
WEG
Catalog Number
00118XT3E143T
Type
Explosion Proof
HP
1
KW
0.75
RPM
1800
Phase
3
Service Factor
1.15
Frame
143T
Voltage
208-230/460
Enclosure
Explosion Proof
Mount
Foot Mount
Full Load Amps
1.43
Warranty
1 Year

Support Documents (pdf)
View full details
