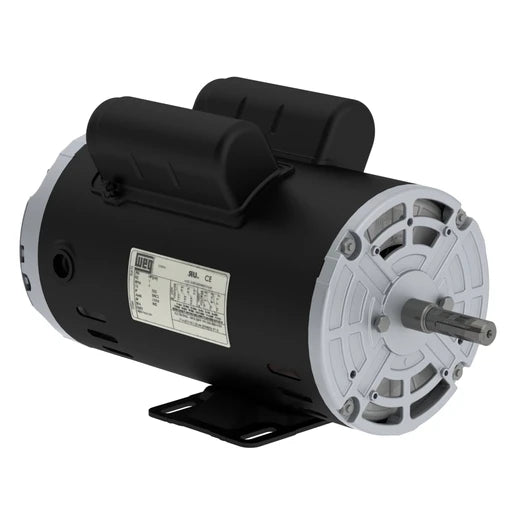

00118OT1B56-S WEG Motor (1 HP, 1800 RPM, 1 Phase, 60 Hertz, 56 Frame, Foot-mounted, ODP, 115/208-230 V)
00118OT1B56-S WEG Motor (1 HP, 1800 RPM, 1 Phase, 60 Hertz, 56 Frame, Foot-mounted, ODP, 115/208-230 V)
SKU:00118OT1B56-S
Regular price
$306.80 USD
Regular price
Sale price
$306.80 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00118OT1B56-S, 1 HP, 1800 RPM, 1 Phase, 60 Hertz, 56 Frame, Foot-mounted, ODP, 115/208-230 V
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00118OT1B56-S |
Type |
General Purpose Motor |
Series |
Single Phase Motor |
HP |
1 |
RPM |
1800 |
Phase |
1 |
Hertz |
60 |
Frame |
56 |
Mounting |
Foot-mounted |
Enclosure |
ODP |
Voltage |
115/208-230 |
Full Load Amps |
4.5 |
Full Load Efficiency |
82.6 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
12.677 |
Warranty |
1 Year |
Support Documents (pdf) |
