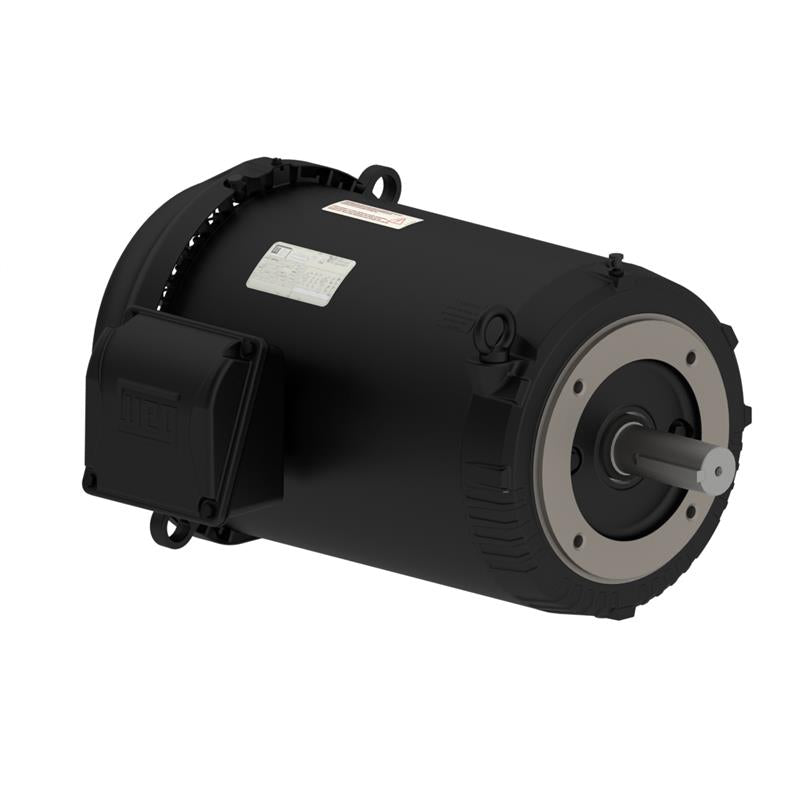

00118ET3H56CFL-S WEG Motor (1 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 575 Voltage, TEFC, Footless)
00118ET3H56CFL-S WEG Motor (1 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 575 Voltage, TEFC, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00118ET3H56CFL-S
Regular price
$0.00 USD
Regular price
$407.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 00118ET3H56CFL-S, 1 HP, 1800 RPM, 3 Phase, 60 Hz, 56C Frame, 575 Voltage, TEFC, Footless
| Applications | |
| General Purpose Motor | |
| Features | |
| New ventilation system for improved thermal performance | |
| Color coded/numbered leads as standard for easy wiring | |
| Bearing cap as standard on flanged motors, optional on non-flanged | |
| IP55 Ingress Protection as standard, being appropriate for severe environments | |
| Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test | |
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 | |
| Aluminum endshields and flange | |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required | |
| Double shielded ball bearings | |
Specifications | |
Brand |
WEG |
Catalog Number |
00118ET3H56CFL-S |
Type |
General Purpose Motor |
HP |
1 |
RPM |
1800 |
Phase |
3 |
Frequency |
60 Hz |
Frame |
56C |
Voltage |
575 |
Enclosure |
TEFC |
Mounting |
Footless |
FL Efficiency |
85.5 |
FL Amps |
1.2 |
Construction |
Rolled Steel |
Service Factor |
1.15 |
"C" Dimensions |
13.504 |
Drive End Flange Type |
C-Face |
Warranty |
1 Year |
Support Documents (pdf) | ||||
