WEG

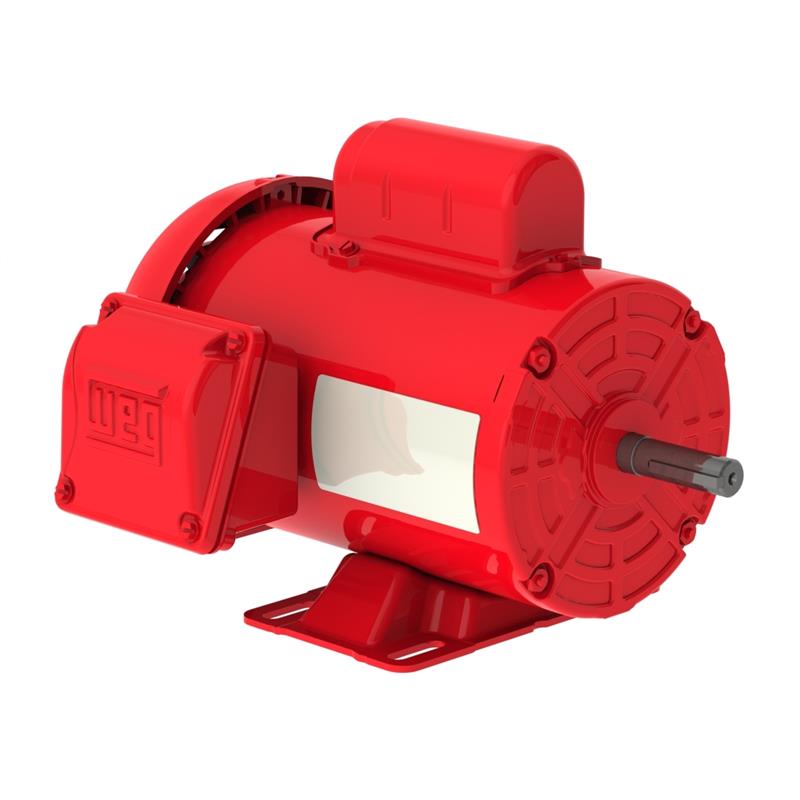

00118ES1RFD56-S WEG General Purpose Motor (1 HP, 1800 RPM, 1 Phase, 56 Frame, TEFC, 115/230 Voltage, Foot Mount)
00118ES1RFD56-S WEG General Purpose Motor (1 HP, 1800 RPM, 1 Phase, 56 Frame, TEFC, 115/230 Voltage, Foot Mount)
No reviews
SKU:00118ES1RFD56-S
Regular price
$287.13 USD
Regular price
Sale price
$287.13 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG 00118ES1RFD56-S, General Purpose Motor, 1 HP, 1800 RPM, 1 Phase, 56 Frame, TEFC, 115/230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
Specifications | |
Brand |
WEG |
Catalog Number |
00118ES1RFD56-S |
Type |
General Purpose Motor |
HP |
1 |
RPM |
1800 |
Phase |
1 |
Frame |
56 |
Service Factor |
1.15 |
Enclosure |
TEFC |
Voltage |
115/230 |
Motor Mount |
Foot Mount |
Full Load Efficiency |
71 |
Full Load AMPS |
6.8 |
"C" Dimension |
13.901 |
Warranty |
1 Year |
Support Documents (pdf) |
