WEG

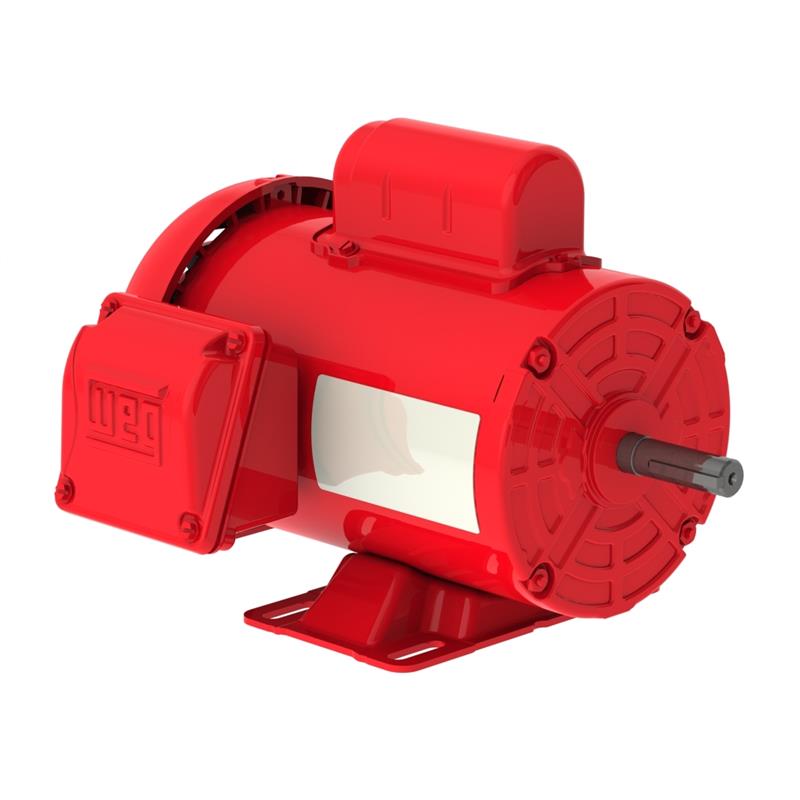

00118ES1RFD143T-S WEG General Purpose Motor (1 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount)

00118ES1RFD143T-S WEG General Purpose Motor (1 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount)

SKU:00118ES1RFD143T-S

Regular price $291.50 USD
Regular price Sale price $291.50 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00118ES1RFD143T-S, General Purpose Motor, 1 HP, 1800 RPM, 1 Phase, 143/5T Frame, TEFC, 115/230 Voltage, Foot Mount
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
Ball Bearings
NPT Threaded Holes in Terminal Box
Class F insulation
F1 Mounted
V-Ring Seals

Specifications

Brand
WEG
Catalog Number
00118ES1RFD143T-S
Type
General Purpose Motor
HP
1
RPM
1800
Phase
1
Frame
143/5T
Service Factor
1.15
Enclosure
TEFC
Voltage
115/230
Motor Mount
Foot Mount
Full Load Efficiency
71
Full Load AMPS
6.8
"C" Dimension
13.901
Warranty
1 Year
