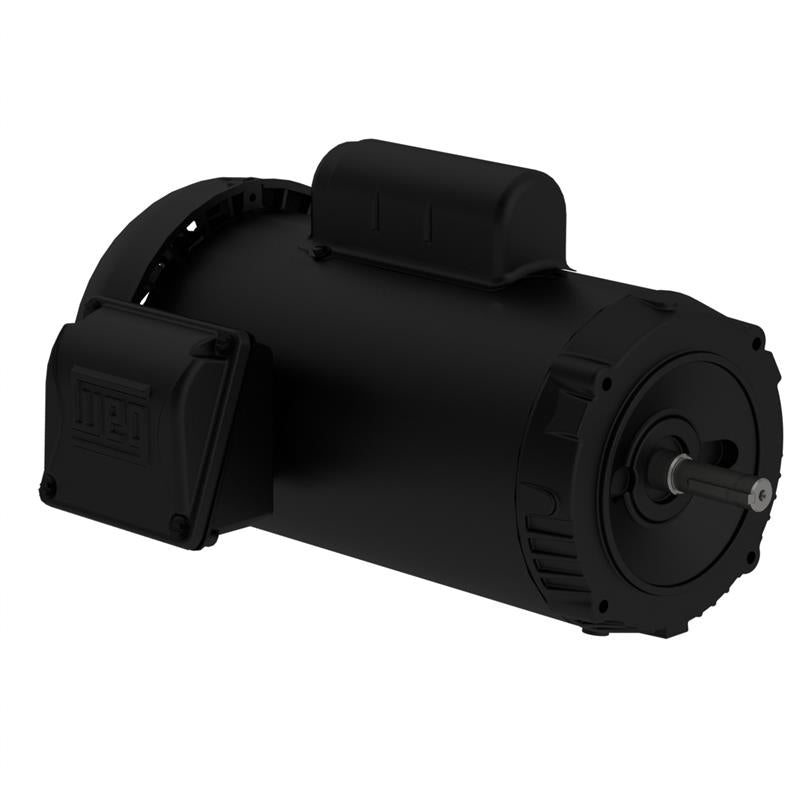

00118ES1ER143TC-S WEG C-Face Motor (1 HP, 1800 RPM, 1 Phase, 60Hz, 143/5TC Frame, Footless, TEFC, 208-230/460V)
00118ES1ER143TC-S WEG C-Face Motor (1 HP, 1800 RPM, 1 Phase, 60Hz, 143/5TC Frame, Footless, TEFC, 208-230/460V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:00118ES1ER143TC-S
Regular price
$0.00 USD
Regular price
$559.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG Motor 00118ES1ER143TC-S, 1 HP, 1800 RPM, 1 Phase, 60Hz, 143/5TC Frame, Footless, TEFC, 208-230/460V, Rolled Steel
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| 182T frames and up are cast iron for severe duty | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| V-ring Seals | |
| Class F insulation | |
Specifications | |
Brand |
WEG |
Catalog Number |
00118ES1ER143TC-S |
Type |
General Purpose C-Face Motor |
Series |
Single Phase Motor |
HP |
1 |
RPM |
1800 |
Phase |
1 |
Hertz |
60 |
Frame |
143/5TC |
Mounting |
Footless |
Enclosure |
TEFC |
Voltage |
208-230/460 |
Full Load Amps |
3.4 |
Full Load Efficiency |
71 |
Frame Material |
Rolled Steel |
Service Factor |
1.15 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
