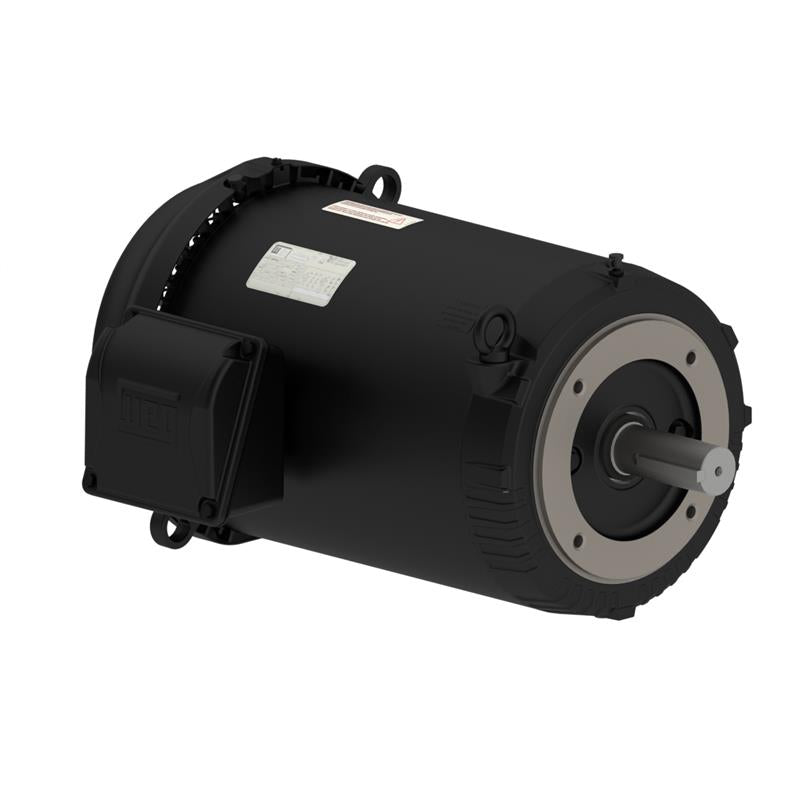

00112ET3E56CFL-S WEG Motor (1 HP, 1200 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)

00112ET3E56CFL-S WEG Motor (1 HP, 1200 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

00112ET3E56CFL-S

$0.00 USD
$528.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

WEG 00112ET3E56CFL-S, 1 HP, 1200 RPM, 3 Phase, 60 Hz, 56C Frame, 230/460V, TEFC, Footless
Applications
General Purpose Motor
Features
New ventilation system for improved thermal performance
Color coded/numbered leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non-flanged
IP55 Ingress Protection as standard, being appropriate for severe environments
Motor frame painting system resistant to a minimum of 500 hours ASTM B117 salt spray test
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Aluminum endshields and flange
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load, if required
Double shielded ball bearings

Specifications

Brand
WEG
Catalog Number
00112ET3E56CFL-S
Type
General Purpose Motor
HP
1
RPM
1200
Phase
3
Frequency
60 Hz
Frame
56C
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
82.5
FL Amps
1.6
Construction
Rolled Steel
Service Factor
1.15
"C" Dimensions
13.504
Drive End Flange Type
C-Face
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
