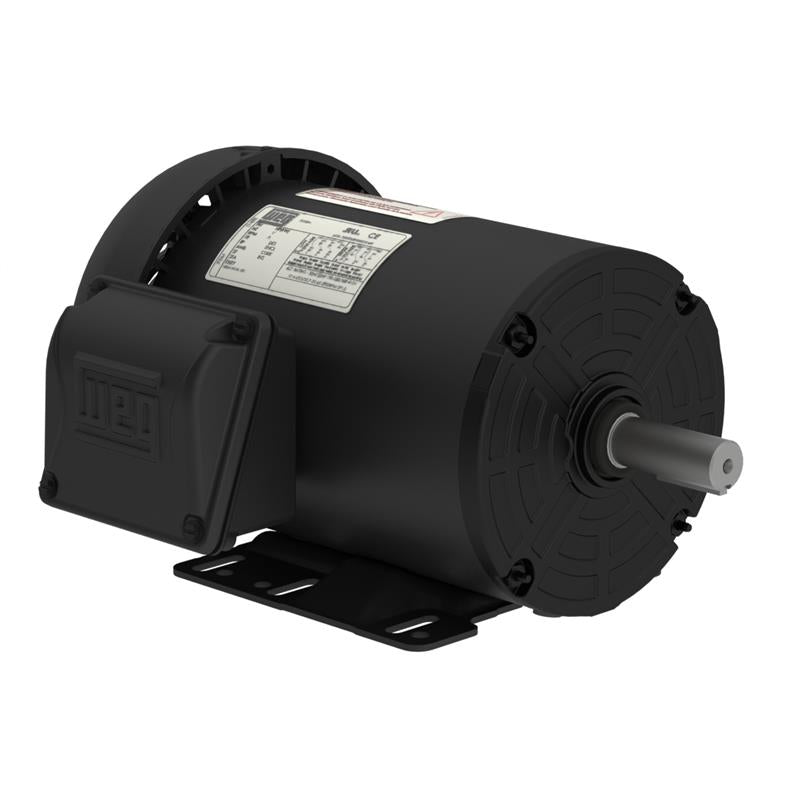

00112ET3E145T-SG WEG Motor (1 HP, 1200 RPM, Three Phase, 143/5T Frame, TEFC Enclosure, 208-230/460 Voltage)

00112ET3E145T-SG WEG Motor (1 HP, 1200 RPM, Three Phase, 143/5T Frame, TEFC Enclosure, 208-230/460 Voltage)

00112ET3E145T-SG

$487.54 USD
$487.54 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 00112ET3E145T-SG, Commercial HVAC Motors Series, 1 HP, 0.75 KW, 1200 RPM, Three Phase, 143/5T Frame, TEFC Enclosure, Foot Mount Motor Mount, 208-230/460 Voltage
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
00112ET3E145T-SG
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
1
KW
0.75
RPM
1200
Phase
Three
C-Dimentions
13.583
Service Factor
1.15
Frame
143/5T
Enclosure
TEFC
Full Load Amps
1.58
Motor Mount
Foot Mount
Voltage
208-230/460
Warranty
1 Year
