U.S. Motors

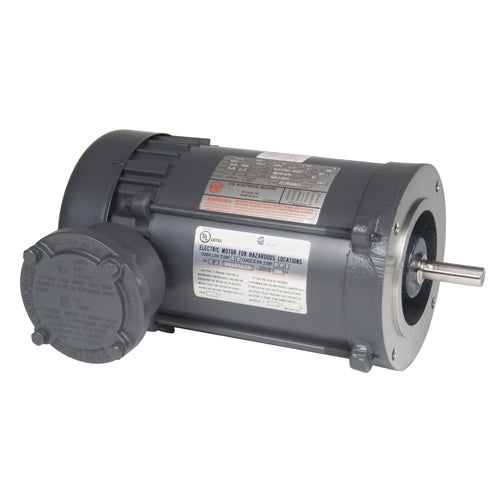

XS34CA1J U.S. Motors Hazardous Location Motor (3/4 HP, 56 Frame, 3600 RPM)
XS34CA1J U.S. Motors Hazardous Location Motor (3/4 HP, 56 Frame, 3600 RPM)
SKU:XS34CA1J
Precio habitual
$553.09 USD
Precio habitual
Precio de oferta
$553.09 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
US Motors Emerson XS34CA1J, HP: 3/4, RPM: 3600, Volts: 115/208-230, Frame: 56, "C" Dim. : 13.2, Phase: Single, Motor Mount : Footed, Enclosure: TEFC, Explosion Proof Motor
| Applications |
| For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. |
| Features |
| UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Hazardous Location Motor |
Model Number |
XS34CA1J |
HP |
3/4 |
RPM |
3600 |
Volts |
115/208-230 |
SF |
1 |
Frame |
56 |
Full Load Amps |
10.4/5.3-5.2 |
"C" Dim. |
13.2 |
Apx. Wt. (lb) |
31 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Single Phase Hazardous Location Motor |
Temp Code |
T3C |
Notes |
Class I (Group C & D), Class II (Group E, F & G) |
