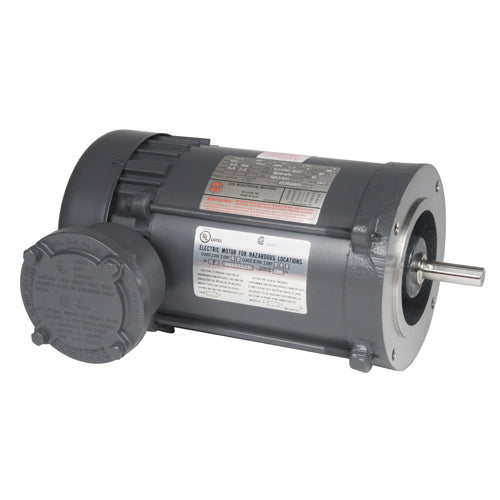

XS1CA1J U.S. Motors Hazardous Location Motor (1 HP, 56 Frame, 3600 RPM)
XS1CA1J U.S. Motors Hazardous Location Motor (1 HP, 56 Frame, 3600 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:XS1CA1J
Precio habitual
$633.40 USD
Precio habitual
$0.00 USD
Precio de oferta
$633.40 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson XS1CA1J, HP: 1, RPM: 3600, Volts: 115/208-230, Frame: 56, "C" Dim. : 14.2, Phase: Single, Motor Mount : Footed, Enclosure: TEFC, Explosion Proof Motor
| Applications |
| For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. |
| Features |
| UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Hazardous Location Motor |
Model Number |
XS1CA1J |
HP |
1 |
RPM |
3600 |
Volts |
115/208-230 |
SF |
1 |
Frame |
56 |
Full Load Amps |
12.0/6.3-6.0 |
"C" Dim. |
14.2 |
Apx. Wt. (lb) |
39 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Single Phase Hazardous Location Motor |
Temp Code |
T3C |
Notes |
Class I (Group C & D), Class II (Group E, F & G) |
