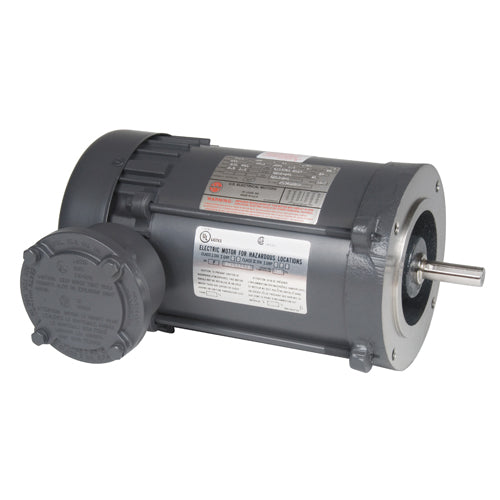

XS14CA3P U.S. Motors Hazardous Location Motor (1/4 HP, 56 Frame, 1200 RPM)
XS14CA3P U.S. Motors Hazardous Location Motor (1/4 HP, 56 Frame, 1200 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:XS14CA3P
Precio habitual
$689.53 USD
Precio habitual
$0.00 USD
Precio de oferta
$689.53 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson XS14CA3P, HP: 1/4, RPM: 1200, Volts: 115/230, Frame: 56, "C" Dim. : 13, Phase: Single, Motor Mount : Footed, Enclosure: TENV, Explosion Proof Motor
| Applications |
| For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. |
| Features |
| UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Hazardous Location Motor |
Model Number |
XS14CA3P |
HP |
1/4 |
RPM |
1200 |
Volts |
115/230 |
SF |
1 |
Frame |
56 |
Full Load Amps |
6.8/3.4 |
"C" Dim. |
13 |
Apx. Wt. (lb) |
22 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TENV |
Type |
Single Phase Hazardous Location Motor |
Temp Code |
T3C |
Notes |
Class I (Group C & D), Class II (Group E, F & G) |
