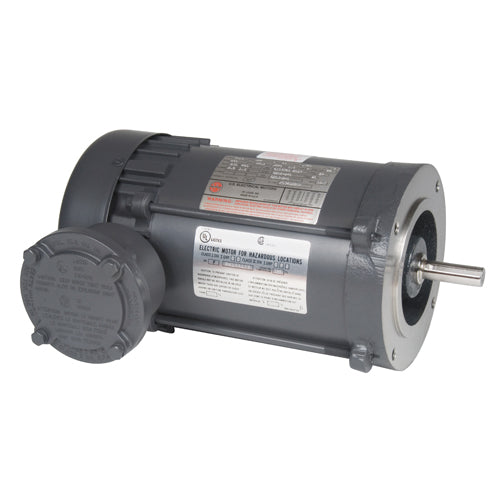

XS13CA2J U.S. Motors Hazardous Location Motor (1/3 HP, 56 Frame, 1800 RPM)
XS13CA2J U.S. Motors Hazardous Location Motor (1/3 HP, 56 Frame, 1800 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:XS13CA2J
Precio habitual
$533.39 USD
Precio habitual
$0.00 USD
Precio de oferta
$533.39 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
US Motors Emerson XS13CA2J, HP: 1/3, RPM: 1800, Volts: 115/208-230, Frame: 56, "C" Dim. : 12.7, Phase: Single, Motor Mount : Footed, Enclosure: TEFC, Explosion Proof Motor
| Applications |
| For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. |
| Features |
| UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Hazardous Location Motor |
Model Number |
XS13CA2J |
HP |
1/3 |
RPM |
1800 |
Volts |
115/208-230 |
SF |
1 |
Frame |
56 |
Full Load Amps |
6.8/3.3-3.4 |
"C" Dim. |
12.7 |
Apx. Wt. (lb) |
30 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Single Phase Hazardous Location Motor |
Temp Code |
T3C |
Notes |
Class I (Group C & D), Class II (Group E, F & G) |
