U.S. Motors

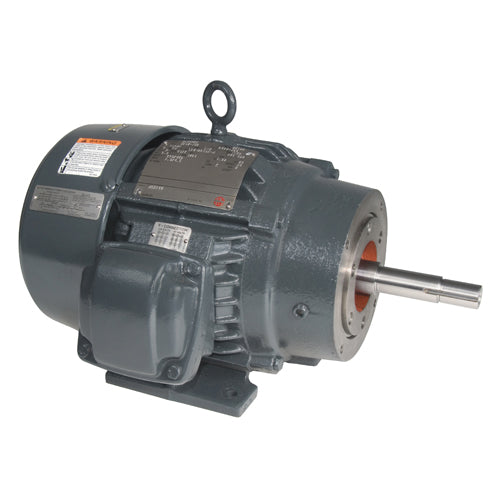

XJ3P2BM U.S. Motor Special Application Close Coupled Pump Motor (3 HP, 3PH, TEFC, 1765 RPM)

Name: XJ3P2BM U.S. Motor Special Application Close Coupled Pump Motor (3 HP, 3PH, TEFC, 1765 RPM)
Brand: U.S. Motors
SKU: XJ3P2BM
Price: 753.55 USD
Availability: InStock

SKU:XJ3P2BM

$753.55 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

XJ3P2BM U.S. Motor Special Application Close Coupled Pump Motor (3 HP, 3PH, TEFC, 1765 RPM)

Model_Number

FL59

PRODUCT NAME

3 HP - TEFC - 1765

PHASETYPE

3_PHASE

MOTOR ENCLOSURE

TEFC

HORSEPOWER

KILOWATTS

2.2

POLES

NUMBER SPEEDS

RPM

1765

RPM 2

1765

HERTZ

VOLTS PRIMARY

230/460

VOLTS

460

VOLTS 2

230

FRME

182

SHAFT CODE

MOUNTING

HORZ-FOOTED

ASSEMBLY POSITION

MOTOR TYPE

LE4

OPPOSITE END BEARING

6205-J/C3

SHAFT END BEARING

6307-J/C3

AMBIENT

ROTATION

DUAL

SERVICE FACTOR

STARTCAPMFD

N\A

SHIPPING WEIGHT

BREAKDOWN TORQUE

391

BREAKDOWN TORQUE UOM

PERCENT OF FLT

LOCKED ROTOR TORQUE

262

LOCKED ROTOR TORQUE UOM

PERCENT OF FLT

INSULATION CLASS

KVA CODE LETTER

LOCKED ROTOR AMPS

NEMA NOMINAL EFFICIENCY

89.5
