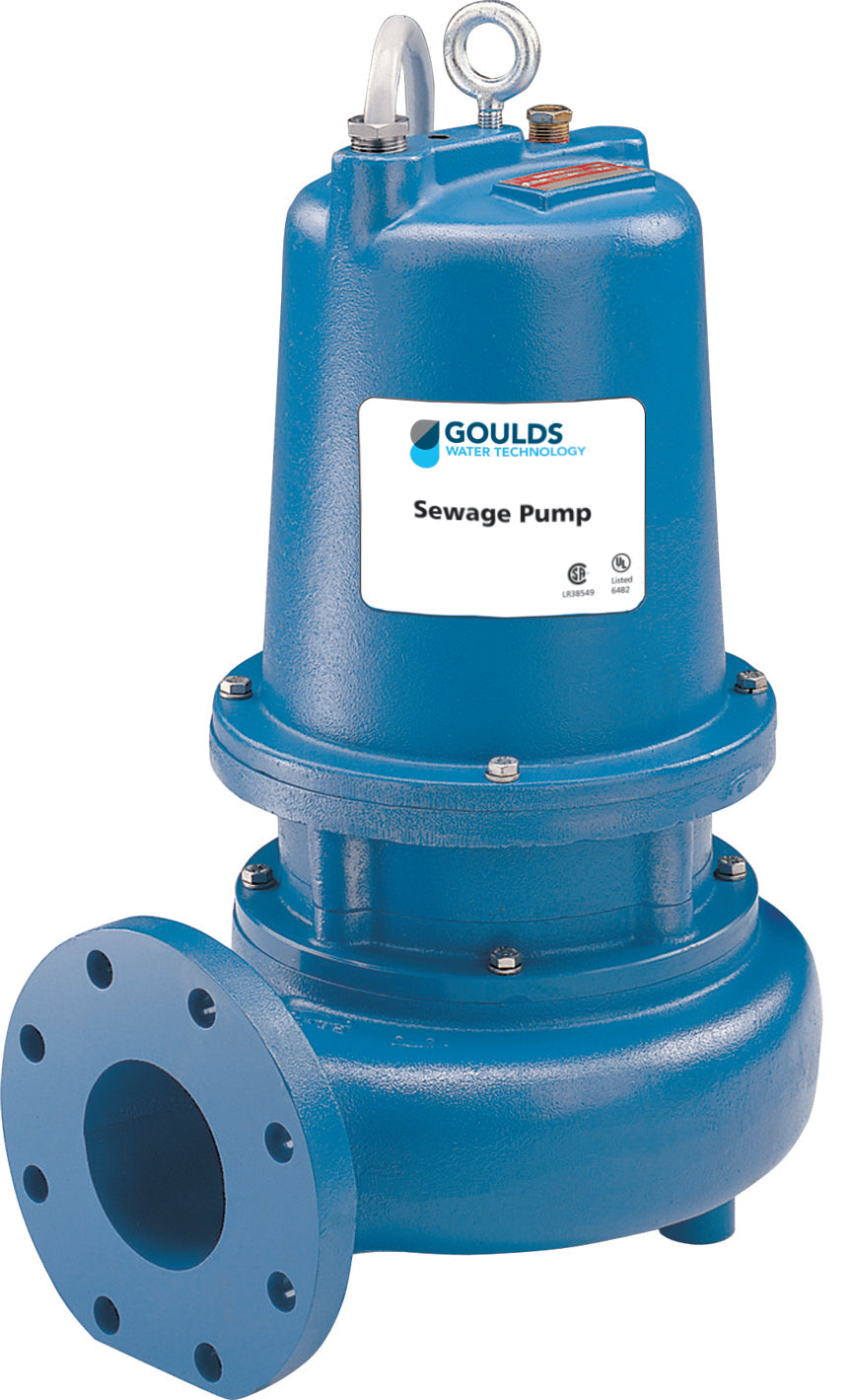

WS7532D4S Goulds WS D4 3888 Series Submersible Wastewater Sewage Pump (7.5 HP, 230 Volt, 3 Phase, 11.69" Impeller, 60 Hz, 1750 RPM, 620 GPM, 60' Max Head, 3" Max Solids, 4" Discharge, 23 Max Amps, 30' Cord)
WS7532D4S Goulds WS D4 3888 Series Submersible Wastewater Sewage Pump (7.5 HP, 230 Volt, 3 Phase, 11.69" Impeller, 60 Hz, 1750 RPM, 620 GPM, 60' Max Head, 3" Max Solids, 4" Discharge, 23 Max Amps, 30' Cord)
[COUNT] shoppers are looking at this right now
No reviews
SKU:WS7532D4S
Precio habitual
$7,408.20 USD
Precio habitual
$12,347.00 USD
Precio de oferta
$7,408.20 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
WS7532D4S Goulds Model 3888, 7.5HP, 230V, Phase 3, Submersible Wastewater Pump
- Cast Iron, two vane semi-iron, non-clog impeller with pump-out vanes for mechanical seal protection
- Heavy Duty cast iron, volute type casing for maximum efficiency
- 4″ Flanged Discharge Size
- Designed for Continuous Operation
| Brand | Goulds |
| Model Number | 3888D4 |
| Mfg. Number | WS7532D4S |
| Series | WS D4 |
| Product Type | Sewage pump |
| Application | Effluent/Sewage/Wastewater |
| Operation | Manual |
| Horsepower | 7-1/2 HP |
| Voltage | 230 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Pump Casing | Cast iron |
| Speed | 1750 RPM |
| Impeller Diameter | 7.69″ |
| Discharge Size | 4″ 125# ANSI flange 8 bolt horizontal |
| Impeller Type | Two vane, semi-open; non-clog |
| Power Cord Length | 30 ft |
| Thermal Protection | Control panel required |
| Maximum Solids Handling | 3″ |
| Maximum Flow | 620 GPM |
| Flow at 30 ft | 510 GPM |
| Maximum Head | 58 ft |
| Flow at 35 ft | 440 GPM |
| Flow at 40 ft | 355 GPM |
| Flow at 45 ft | 260 GPM |
| Flow at 50 ft | 155 GPM |
| Flow at 55 ft | 80 GPM |
| Locked Rotor Current | 105.0 Amps |
| Maximum Working Pressure | 30 PSI |
| Maximum Submergence | 50 ft |
| Maximum Current | 23.0 Amps |
| KVA Code | G |
| Full Load Motor Efficiency | 83% |
| Resistance Start / Line-Line | NA / 0.7 |
| Maximum Temperature (Continuous) | 104°F |
| Maximum Temperature (Intermittent) | 140°F |
