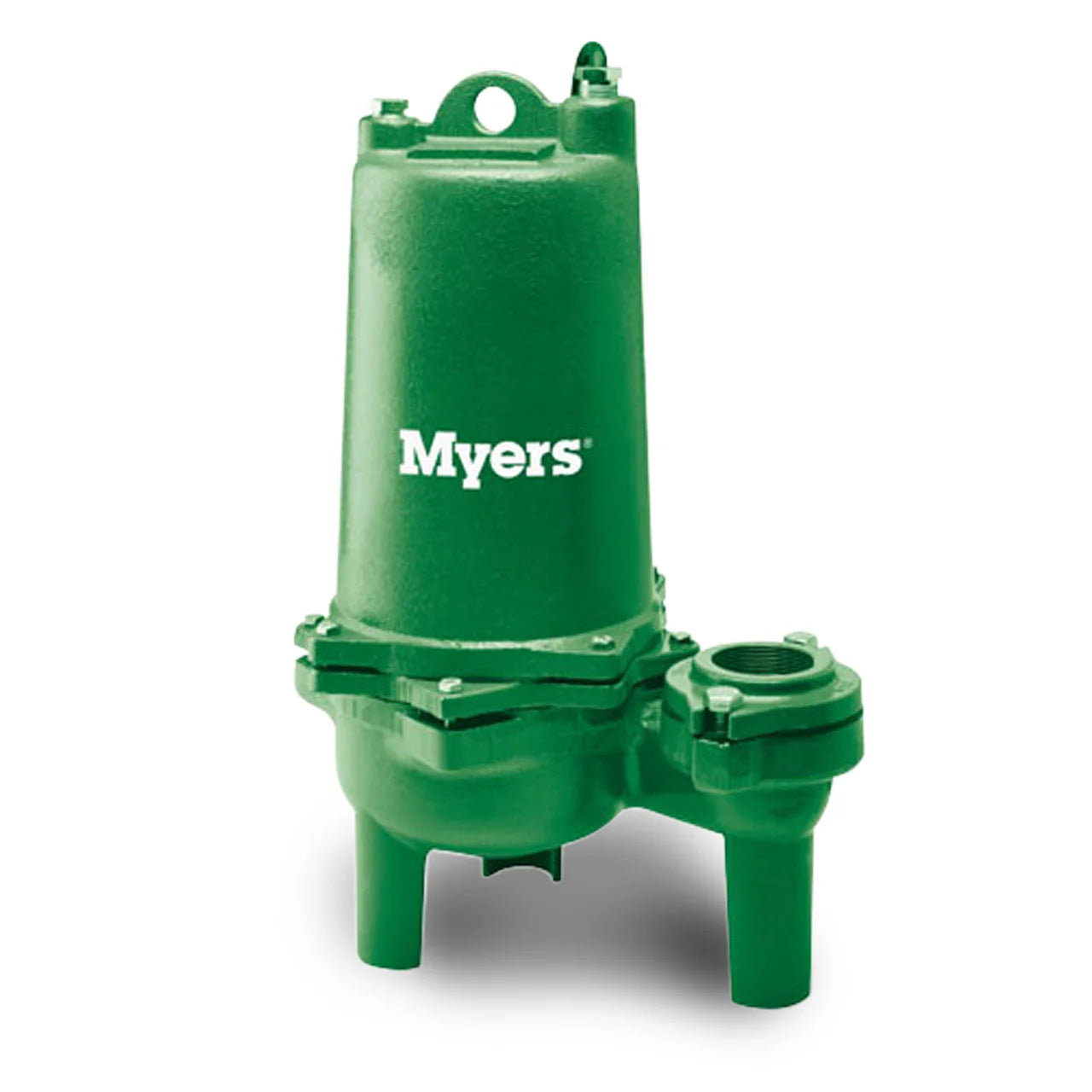

WHR20H-43 Myers WHRH Series High Head Solids Handling Sewage Pump (Model # 27165E035, 2 HP, 460 Volt, 3 Phase, 2" Discharge, Manual Float Switch, 20' Cord)

WHR20H-43 Myers High Head Sewage Pump (2.0 HP, 460V, 3 Phase, Manual, 20' Cord)

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 4.5
• MOTOR TYPE: Permanent Split Capacitor (PSC)
• RPM: 3450
• MAXIMUM HEAD: up to 71'
• MAXIMUM CAPACITY: up to 215 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 36”
• DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Ductile Iron, Recessed
• IMPELLER DIAMETER: 4.56"
• CORD LENGTH: 20'
• CORD SIZE: 16/4; Type: SJOW/SJOW-A
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)

Myers WHRH Series High Head Sewage Pump Description

The WHR5H - WHR20H Series 2-HP Sewage Pumps are designed for use in Light Commercial & Residential Raw Sewage and Effluent Applications. They deliver higher heads than standard sewage pumps and will pass 2" solids. Recessed vortex impeller provides an unobstructed passage in the volute case, allowing the pump to handle stringy trash without plugging the impeller.

Myers WHRH Series High Head Sewage Pump Typical Applications

• Residential and Commercial Sewage
• High Capacity Sump
• Effluent
• Domestic Wastewater
• Septic Pumping Applications

Myers WHRH Series High Head Sewage Pump Features

• Tough Against Corrosion All Cast Iron Construction Resists the Most Extreme Corrosive Environments.
• Runs Cooler Oil-Filled Motor for Bearing Lubrication and Maximum Heat Dissipation.
• Flow to Meet Demand Higher Head Performance for Demanding Sewage and Effluent Applications.
• Powerful Starts High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Thermal Protection Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
