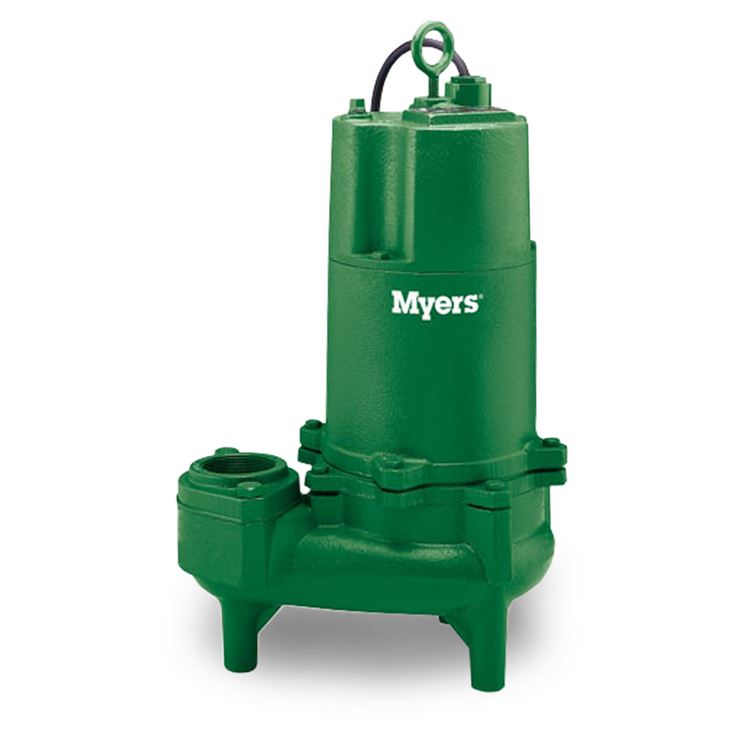

WHR10-03 Myers Sewage Pump (1 HP, 200V, 3 Phase, Manual, 20' Cord, 2"NPT Discharge, 178 GPM Max)

WHR10-03 Myers Sewage Pump (1 HP, 200V, 3 PH, Manual, 20' Cord)

The Myers® WHR series sewage pumps feature all cast iron construction to withstand the most extreme conditions. Available in single seal, and double seal models for additional protection against water leakage. The enclosed two-vane impeller provides high-efficiency pumping and will handle stringy, trashy 2" solids without clogging. Designed for sewage and effluent and can be used for applications requiring high heads.

Myers WHR Series Sewage Pump Typical Applications

Residential and Commercial Sewage, Domestic Wastewater and Septic Systems

Myers WHR Series Sewage Pump Features

• Non-Clog Design: Recessed Impeller Provides Maximum Efficiency and Eliminates Jamming Between Volute Case - Cast Iron Construction.
• Leak Detection: Leak Probe Senses Water Leakage Past Seal (Dual Seal Motors Only).
• Cool Running: Durable, Oil-Filled Motor for Continuous Bearing Lubrication and Maximum Heat Dissipation.
• Powerful Starts: High-Torque, Permanent Split Capacitor (PSC) Motor; No Starting Switches or Relays to Wear Out.
• Thermal Protection: Heat Sensor Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature.
• High-Capacity Handling: Passes Full 2" Solids.

SPECIFICATIONS:

VOLTAGE: 3ø, 200V, 60Hz
HORSEPOWER: 1.0 HP
AMP DRAW (full load): 6.0
MOTOR TYPE: Permanent Split Capacitor (PSC)
MAXIMUM HEAD: up to 33'
MAXIMUM CAPACITY: up to 178 GPM
SWITCH TYPE: Manual
MINIMUM SUMP DIAMETER: Simplex: 24” Duplex: 30”
DISCHARGE PIPE SIZE: 2.0" NPT (3.0" optional)
MAXIMUM SOLIDS HANDLING SIZE: 2.0"
IMPELLER TYPE: Cast Iron, Vortex
CORD LENGTH: 20'
CORD SIZE: 16/4; Type: SJOW/SJOW-A
BODY CONSTRUCTION: Cast Iron
MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
