Goulds Pumps

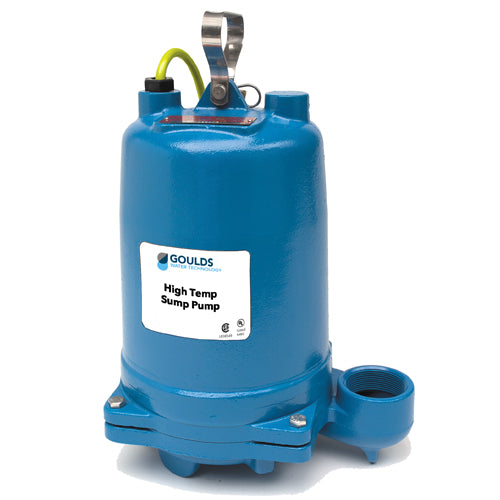

WEHT0318MP1 Goulds Pumps High Temp Sump Pumps (1/3 HP, 1 Phase, 208 Volts, 2" Discharge, Float Included)
WEHT0318MP1 Goulds Pumps High Temp Sump Pumps (1/3 HP, 1 Phase, 208 Volts, 2" Discharge, Float Included)
No reviews
SKU:WEHT0318MP1
Precio habitual
$1,146.52 USD
Precio habitual
$1,781.00 USD
Precio de oferta
$1,146.52 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Goulds Pumps WEHT0318MP1, Goulds Submersible High Temp Pumps Type, 1/3 HP, 1 Phase, 208 Volts,
| Applications | |
| Boiler blow down, high temp condensate | |
| Features | |
| Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option. | |
| Casing: Cast iron volute type for maximum efficiency. 2" NPT discharge. | |
| Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers. | |
| Shaft: Corrosion-resistant, stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. | |
| Fasteners: 300 series stainless steel. | |
| Capable of running dry without damage to components. | |
| Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer. | |
| Capacitor start motors for maximum starting torque. | |
| Built-in overload with automatic reset. | |
| SJOOW severe duty oil and water resistant power cords, rated for high temperature. | |
| Models have NEMA three prong grounding plugs. | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
WEHT0318MP1 |
Type |
Goulds Submersible High Temp Pumps |
Series |
WEHT |
HP |
1/3 |
Phase |
1 |
Volts |
208 |
RPM |
1750 |
Impeller Diameter |
5.38" |
Max Amps |
7.3 |
LRA |
19.5 |
KVA Code |
K |
Full Load Motor EFF. |
51 |
Resistance Start |
9.1 |
Resistance Line-Line |
4.2 |
Weight (lbs) |
56 |
Operation |
Auto-matic Float Included |
Discharge |
2" |
Solid Handling |
3/4" Max |
Max GPM |
70 |
Max Head |
27 ft. |
Max Temp (F) |
200 continuous, fully submerged |
Insulation |
Class B |
Hz |
60 |
Ultra High Temp Float Switch (Not Included) |
A2SJRHT32 |
Notes |
See support documents |
Support Documents (pdf) |
