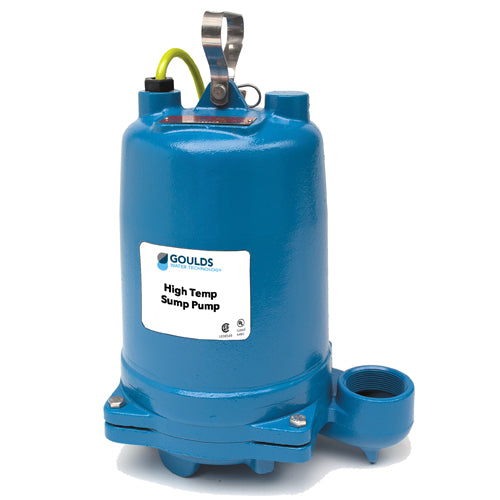

• WEHT0311M15 Goulds Pumps High Temp Sump Pumps (1/3 HP, 1 Phase, 115 Volts, 1-1/2" Discharge, Manual Operation)
1 1

Goulds Pumps

WEHT0311M15 Goulds Pumps High Temp Sump Pumps (1/3 HP, 1 Phase, 115 Volts, 1-1/2" Discharge, Manual Operation)

WEHT0311M15 Goulds Pumps High Temp Sump Pumps (1/3 HP, 1 Phase, 115 Volts, 1-1/2" Discharge, Manual Operation)

WEHT0311M15

$941.81 USD
$1,463.00 USD $941.81 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps WEHT0311M15, Goulds Submersible High Temp Pumps Type, 1/3 HP, 1 Phase, 115 Volts,
Applications
Boiler blow down, high temp condensate
Features
Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option.
Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers.
Shaft: Corrosion-resistant, stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation.
Fasteners: 300 series stainless steel.
Capable of running dry without damage to components.
Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer.
Capacitor start motors for maximum starting torque.
Built-in overload with automatic reset.
SJOOW severe duty oil and water resistant power cords, rated for high temperature.
Models have NEMA three prong grounding plugs.

Specifications

Brand
Goulds Pumps
Catalog Number
WEHT0311M15
Type
Goulds Submersible High Temp Pumps
Series
WEHT
HP
1/3
Phase
1
Volts
115
RPM
1750
Impeller Diameter
5.38"
Max Amps
12
LRA
31.1
KVA Code
J
Full Load Motor EFF.
55
Resistance Start
9.3
Resistance Line-Line
1.4
Weight (lbs)
56
Operation
Manual
Discharge
1-1/2"
Solid Handling
3/4" Max
Max GPM
70
Max Head
27 ft.
Max Temp (F)
200 continuous, fully submerged
Insulation
Class B
Hz
60
Ultra High Temp Float Switch (Not Included)
A2SJRHT31
Notes
See support documents
