• WDP5P2AC U.S. Motors Washdown Motor (5 HP, 184TC Frame, C-Face , 1800 RPM) - KG Power Systems
1 1

U.S. Motors

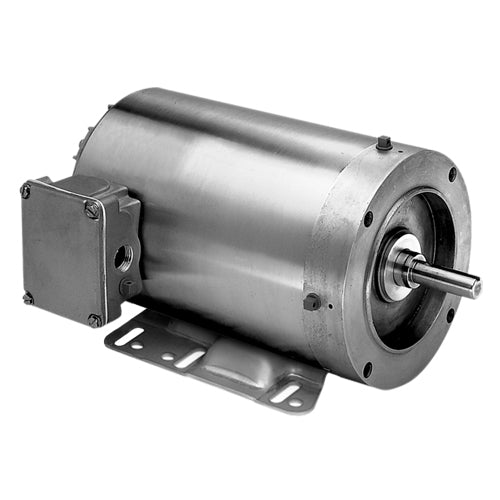

WDP5P2AC U.S. Motors Washdown Motor (5 HP, 184TC Frame, C-Face , 1800 RPM)

WDP5P2AC U.S. Motors Washdown Motor (5 HP, 184TC Frame, C-Face , 1800 RPM)

[COUNT] shoppers are looking at this right now

WDP5P2AC

$1,537.65 USD
$0.00 USD $1,537.65 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

US Motors Emerson WDP5P2AC, HP: 5, RPM: 1800, Volts: 208-230/460, Frame: 184TC, "C" Dim. : 18.5, Full Load Efficiency : 89.5, Phase: Three, Motor Mount : Footed , Enclosure: TEFC, Water Proof Motor

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B

Tech Specs.

Brand
U.S. Motors/Emerson Paint Free Washdown Motor
Model Number
WDP5P2AC
HP
5
RPM
1800
Volts
208-230/460
SF
1.15
Frame
184TC
Full Load Amps
13.6-12.3/6.1
"C" Dim.
18.5
Apx. Wt. (lb)
75
Full Load Efficiency
89.5
Phase
Three
Motor Mount
Footed
Enclosure
TEFC
Type
Three Phase Paint Free Washdown Motor
Motor Face
C-Face

  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
Ver todos los detalles
