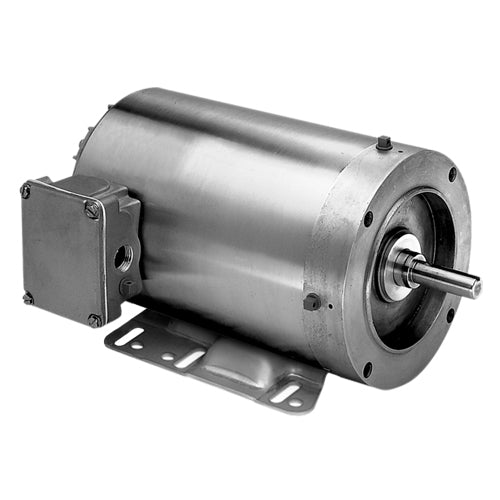

WDP10P2AC U.S. Motors Washdown Motor (10 HP, 215TC Frame, C-Face , 1800 RPM)

US Motors Emerson WDP10P2AC, HP: 10, RPM: 1800, Volts: 208-230/460, Frame: 215TC, "C" Dim. : 21.2, Full Load Efficiency : 91.7, Phase: Three, Motor Mount : Footed , Enclosure: TEFC, Water Proof Motor

Applications

Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

Features

Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B

Tech Specs.
Brand	U.S. Motors/Emerson Paint Free Washdown Motor
Model Number	WDP10P2AC
HP	10
RPM	1800
Volts	208-230/460
SF	1.15
Frame	215TC
Full Load Amps	26.5-23.8/11.9
"C" Dim.	21.2
Apx. Wt. (lb)	125
Full Load Efficiency	91.7
Phase	Three
Motor Mount	Footed
Enclosure	TEFC
Type	Three Phase Paint Free Washdown Motor
Motor Face	C-Face
