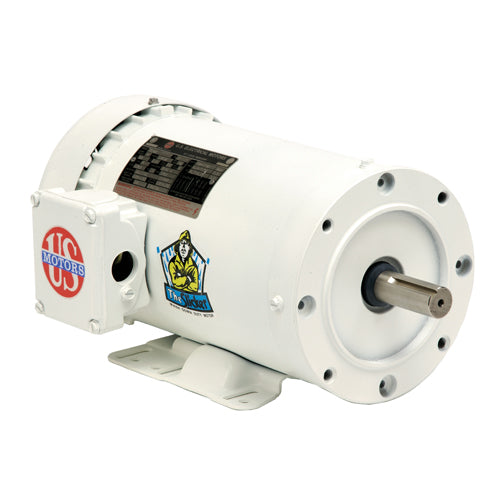

WD32C2JHC U.S. Motors Washdown Motor (1 1/2 HP, 56HC Frame, 1800 RPM)

WD32C2JHC U.S. Motors Washdown Motor (1 1/2 HP, 56HC Frame, 1800 RPM)

WD32C2JHC

$703.65 USD
$703.65 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson WD32C2JHC, HP: 1 1/2, RPM: 1800, Volts: 115/208-230, Frame: 56HC, Motor Mount : Footed, Enclosure: TEFC, Type: Single Phase Washdown Motor, Notes: 0,

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Class F Insulation; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; V-Ring Rotating Lip Seal On Shaft End; F1 Assembly Position; Double Contact Sealed Ball Bearings; Reversible Rotation; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Stationary Grease Seal On Both Ends; 303 Stainless Steel Shaft; Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes; Multiple Stainless Steel T-type Drains

Tech Specs.

Brand
U.S. Motors/Emerson Single Phase Washdown Motor
Model Number
WD32C2JHC
HP
1 1/2
RPM
1800
Volts
115/208-230
SF
1.15
Frame
56HC
Full Load Amps
14.4/8.0-7.2
"C" Dim.
13.6
Apx. Wt. (lb)
51
Speed
Single
Phase
Single
Motor Mount
Footed
Enclosure
TEFC
Type
Single Phase Washdown Motor
Rotation
Reversible
Notes
