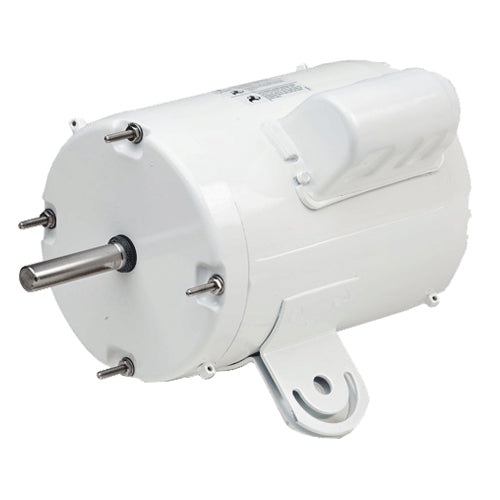

WD14AA2PZ7 U.S. Motors Washdown Motor (1/4 HP, 56YZ Frame, 1800 RPM)

WD14AA2PZ7 U.S. Motors Washdown Motor (1/4 HP, 56YZ Frame, 1800 RPM)

WD14AA2PZ7

$358.44 USD
$358.44 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson WD14AA2PZ7, HP: 1/4, RPM: 1800, Volts: 115/230, Frame: 56YZ, Motor Mount : Yoke Mount, Enclosure: TEAO, Type: Non-Oscillating Totally Enclosed Air Over (TEAO) Fan Motors, Notes: Permanent Split Capacitor,

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Class F Insulation; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; V-Ring Rotating Lip Seal On Shaft End; F1 Assembly Position; Double Contact Sealed Ball Bearings; Reversible Rotation; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Stationary Grease Seal On Both Ends; 303 Stainless Steel Shaft; Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes; Multiple Stainless Steel T-type Drains

Tech Specs.

Brand
U.S. Motors/Emerson Single Phase Washdown Motor
Model Number
WD14AA2PZ7
HP
1/4
RPM
1800
Volts
115/230
SF
1
Frame
56YZ
Full Load Amps
3.5/1.7
"C" Dim.
10.9
Apx. Wt. (lb)
22
Speed
Single
Phase
Single
Motor Mount
Yoke Mount
Enclosure
TEAO
Type
Non-Oscillating Totally Enclosed Air Over (TEAO) Fan Motors
Rotation
Reversible
Notes
Permanent Split Capacitor
