U.S. Motors

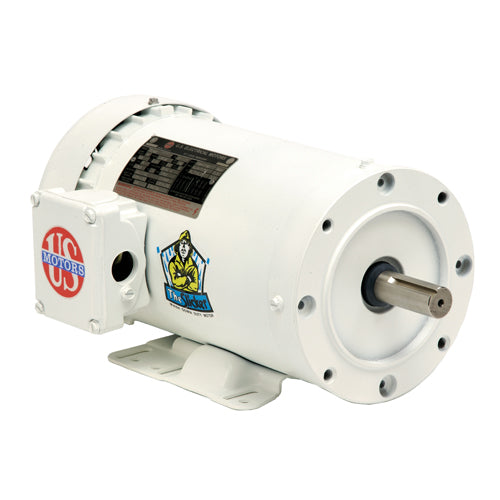

WD12C1JCR U.S. Motors Washdown Motor (1/2 HP, 56C Frame, 3600 RPM)

WD12C1JCR U.S. Motors Washdown Motor (1/2 HP, 56C Frame, 3600 RPM)

WD12C1JCR

$424.08 USD
$424.08 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson WD12C1JCR, HP: 1/2, RPM: 3600, Volts: 115/208-230, Frame: 56C, Motor Mount : Footless, Enclosure: TEFC, Type: Single Phase Washdown Motor, Notes: 0,

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Class F Insulation; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; V-Ring Rotating Lip Seal On Shaft End; F1 Assembly Position; Double Contact Sealed Ball Bearings; Reversible Rotation; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Stationary Grease Seal On Both Ends; 303 Stainless Steel Shaft; Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes; Multiple Stainless Steel T-type Drains

Tech Specs.

Brand
U.S. Motors/Emerson Single Phase Washdown Motor
Model Number
WD12C1JCR
HP
1/2
RPM
3600
Volts
115/208-230
SF
1.15
Frame
56C
Full Load Amps
7.3/3.9-3.7
"C" Dim.
12.8
Apx. Wt. (lb)
31
Speed
Single
Phase
Single
Motor Mount
Footless
Enclosure
TEFC
Type
Single Phase Washdown Motor
Rotation
Reversible
Notes
