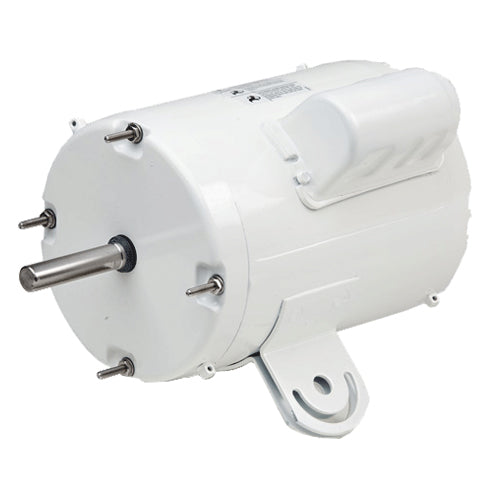

WD12AA2PZ7 U.S. Motors Washdown Motor (1/2 HP, 56YZ Frame, 1800 RPM)
WD12AA2PZ7 U.S. Motors Washdown Motor (1/2 HP, 56YZ Frame, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:WD12AA2PZ7
Precio habitual
$370.04 USD
Precio habitual
$0.00 USD
Precio de oferta
$370.04 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson WD12AA2PZ7, HP: 1/2, RPM: 1800, Volts: 115/230, Frame: 56YZ, Motor Mount : Yoke Mount, Enclosure: TEAO, Type: Non-Oscillating Totally Enclosed Air Over (TEAO) Fan Motors, Notes: Permanent Split Capacitor,
| Applications |
| Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. |
| Features |
| Class F Insulation; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; V-Ring Rotating Lip Seal On Shaft End; F1 Assembly Position; Double Contact Sealed Ball Bearings; Reversible Rotation; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Stationary Grease Seal On Both Ends; 303 Stainless Steel Shaft; Moisture-Resistant Gasketed Conduit Box With NPT Lead Holes; Multiple Stainless Steel T-type Drains |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Washdown Motor |
Model Number |
WD12AA2PZ7 |
HP |
1/2 |
RPM |
1800 |
Volts |
115/230 |
SF |
1 |
Frame |
56YZ |
Full Load Amps |
5.9/2.9 |
"C" Dim. |
11.9 |
Apx. Wt. (lb) |
26 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Yoke Mount |
Enclosure |
TEAO |
Type |
Non-Oscillating Totally Enclosed Air Over (TEAO) Fan Motors |
Rotation |
Reversible |
Notes |
Permanent Split Capacitor |
