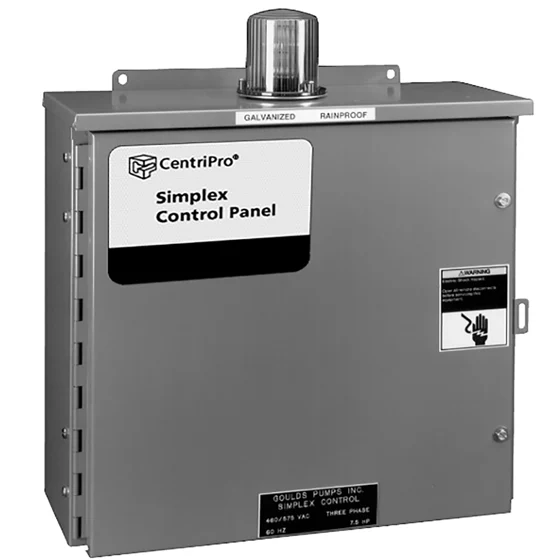

Goulds W3-7534, Simplex Wastewater Control Panel, W3 Series, 7-1/2 HP, 460/575 Volts, 3 Phase, Indoor/Outdoor NEMA 3R, Fiberglass Enclosure

Goulds Centripro W3 Series Wastewater Control Panels

This wastewater control panel provides automatic or manual pump operation, three leg motor protection and optional recommended seal failure and over temperature circuits.

Note; Level control switches required, order switches separately.

Audible alarm devices, bell or horn, are not included as standard equipment.
Features

NEMA 3R, raintight, dead-front enclosure
Field adjustable from 230 to 208 VAC and 460 to 575 VAC
Pump circuit breakers
Control circuit transformers
Transformer circuit breaker (primary side)
Surge arrestor
Control circuit fusing
NEMA Rated Starter with solid-state, Class 5, 10, 20, 30, adjustable overloads. The solid-state, adjustable overload also provides protection against phase-loss or single-phasing, and phase on balance
Locking hasp
Manual reset high level alarm circuit
Flashing red Lexan alarm light
Pump run lights
Hand-off-auto selectors.
Provision for separate 120 VAC control circuit
All panels and options UL and CSA listed.
Dry contacts for remote alarm activation
NEMA 4, NEMA 4X, and NEMA 12 enclosure options are available.
