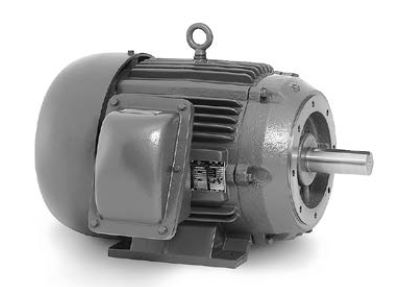

VXM050242A Baldor Explosion Proof Motor (0.25HP,1725RPM,3PH,60HZ,56C,XPFC,F1)
VXM050242A Baldor Explosion Proof Motor (0.25HP,1725RPM,3PH,60HZ,56C,XPFC,F1)
SKU:VXM050242A
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
VXM050242A Baldor Explosion Proof Motor (0.25HP,1725RPM,3PH,60HZ,56C,XPFC,F1)
Catalog Number VXM050242A
Enclosure XPFC
Frame 56C
Frame Material Steel
Frequency 60.00 Hz
Haz Area Class and Group CLI GP D; CLII GP F,G
Haz Area Division Division I
Motor Letter Type Three Phase
Output @ Frequency .250 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
208.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals CSA
UL
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Current @ Voltage 1.400 A @ 208.0 V
1.300 A @ 230.0 V
.650 A @ 460.0 V
Design Code B
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 63.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
Haz Area Temp Code T3C
Heater Indicator No Heater
High Voltage Full Load Amps 0.7 a
Insulation Class B
Inverter Code Not Inverter
IP Rating NONE
KVA Code L
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator No Locked Bearing
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3410M
Mounting Arrangement F1
Number of Poles 4
Overall Length 13.22 IN
Power Factor 56
Product Family Hazardous Location Motor
Pulley Face Code C-Face
Rodent Screen None
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed 1725 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 Automatic Thermal Overload
Winding Thermal 1 Location EP
Winding Thermal 2 None
