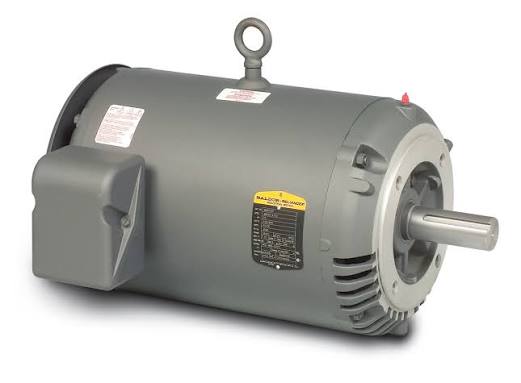

VM3153T Baldor C-Face General Purpose Industrial Motor (3/4 HP, 208-230/460 Volt, 1200 RPM, Three Phase, ODP Enclosure, 143TC Frame, Footless)
VM3153T Baldor C-Face General Purpose Industrial Motor (3/4 HP, 208-230/460 Volt, 1200 RPM, Three Phase, ODP Enclosure, 143TC Frame, Footless)
[COUNT] shoppers are looking at this right now
SKU:VM3153T
Precio habitual
$791.75 USD
Precio habitual
$998.00 USD
Precio de oferta
$791.75 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor VM3153T, HP: 3/4, RPM: 1200, Volts: 208-230/460, NEMA Frame : 143TC, "C" Dim : 13.41, Full Load Amps : 1.5, Enclosure: ODP, Footless, Motor Applications: Pumps, Compressors, Fans
| Applications |
| Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor. |
| Features |
| Pressure cast aluminum end plates with ribbed design for rigidity. Ball bearings with a locked drive end bearing and heavy-gauge steel frames. |
|
Tech Specs. |
|
|
Brand
|
Baldor General Purpose Industrial Motor
|
|
Model Number
|
VM3153T
|
|
HP
|
3/4
|
|
RPM
|
1200
|
|
Volts
|
208-230/460
|
|
"C" Dim
|
13.41
|
|
NEMA Frame
|
143TC
|
|
Full Load Amps
|
1.5
|
|
Full Load Efficiency
|
77
|
|
Apx. Wt. (lb)
|
33
|
|
EISA Status
|
C
|
|
Phase
|
Three Phase
|
|
Motor Mount
|
Footless
|
|
Enclosure
|
ODP
|
|
Type
|
C-Face
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
