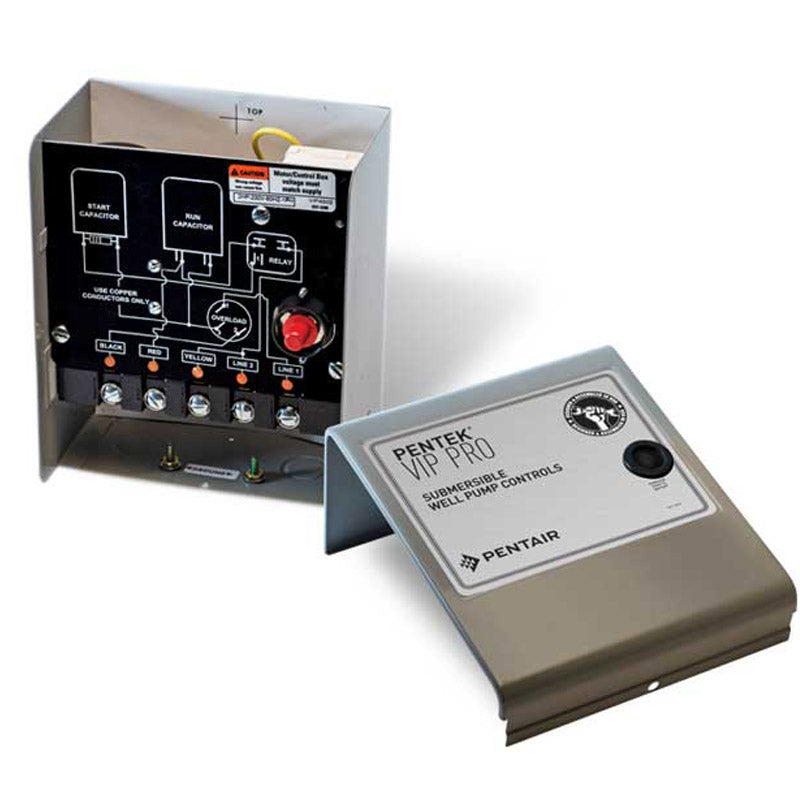

VIP4F02 PENTEK Submersible Pump Control Box (1.5 HP, 1.1 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure, VIP Pro Series)

PENTEK VIP4F02, 4 Single-Phase Control Boxes Type, VIP Pro Series, 1.5 HP, 1.1 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure,

Applications
Pentek VIP Pro Series Controls. Capacitor start, capacitor run designed for the full range of single-phase 1/2, 3/4, 1, 1-1/2, 2, 3 and 5 HP, 3-wire submersible motors
Features
330 Volt Made in the USA capacitors
Pentek proprietary dielectric control panel board, UL and CSA Certified
Universal controls? designed to work on all manufacturers 3-wire submersible motors
Large wiring area offers generous space to make your wiring connections. Incorporates 1/2, 3/4 and 1 conduit knock-outs
Weather resistant construction NEMA 3R/IP24 rated enclosure for indoor/ outdoor use
Through-the-cover reset overload protection on 1-1/2 through 5 HP models
Control box is functional with the cover removed, offering easier in-the-field troubleshooting
330 Volt Start Capacitor
*Control boxes are designed to be used on Pentair motors with the same HP and Voltage ratings. Do not use on motors with different ratings.

Specifications
Brand	PENTEK
Catalog Number	VIP4F02
Type	4 Single-Phase Control Boxes
Series	VIP Pro
HP	1.5
KW	1.1
Voltage	230
Hz	60
Enclosure Size	A
Voltage Relay	U17-2078
Protector	CGP69JB-7
Enclosure	NEMA 3R/IP24
Start Capacitor PN	U17-1430
Run Capacitor PN	U17-1438
Type	CSCR
Notes	See Support Documents
