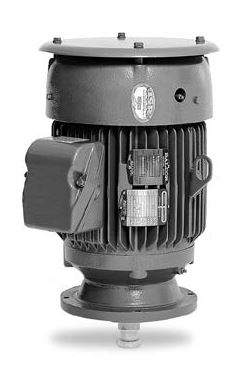

VHECP3660T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor (3 HP, 3600 RPM, 182HP Frame, Normal Thrust)
VHECP3660T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor (3 HP, 3600 RPM, 182HP Frame, Normal Thrust)
[COUNT] shoppers are looking at this right now
No reviews
SKU:VHECP3660T
Precio habitual
$2,832.98 USD
Precio habitual
$3,942.00 USD
Precio de oferta
$2,832.98 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Baldor Motor VHECP3660T, HP: 3, RPM: 3600, Volts: 230/460, NEMA Frame : 182HP, "C" Dim : 22.18, Full Load Amps : 3.5, Enclosure: TEFC, Industrial Pump Motor , Normal Thrust , 1.15
| Applications |
| For normal medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications. |
| Features |
| Severe duty construction with corrosion-resistant epoxy finish, cast-iron construction, designed for vertical mounting. Rotatable conduit box, stainless steel nameplates, shaft seals. Energy efficient windings. Two lifting lugs for balanced lifting. VHECP motors have NEMA Premium efficiency and are Inverter-Ready. 1.15 Service Factor. |
Tech Specs. | |
Brand |
Baldor Premium Efficient Super-E |
Model Number |
VHECP3660T |
HP |
3 |
RPM |
3600 |
Volts |
230/460 |
"C" Dim |
22.18 |
NEMA Frame |
182HP |
Full Load Amps |
3.5 |
Full Load Efficiency |
89.5 |
Apx. Wt. (lb) |
120 |
EISA Status |
B |
Service Factor |
1.15 |
Motor Base |
P-Base |
Phase |
3 |
Enclosure |
TEFC |
Thrust |
Normal Thrust |
