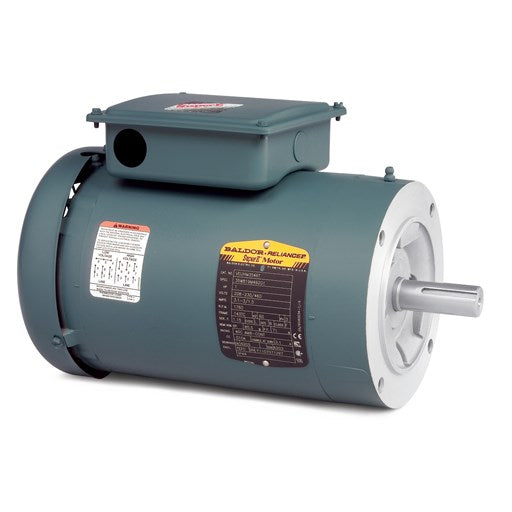

VEUHM3546 Baldor Super-E C-Face Unit Handling Motor, TEFC (1 HP, 56C Frame, Three Phase, 1800 RPM)

Baldor Motor VEUHM3546, HP: 1, RPM: 1800, Volts: 208-230/460, "C" Dim: 13.23, Frame: 56C, Full Load Amps: 1.5, Phase: Three, Motor Mount: Footless, Enclosure: TEFC, conveyors, hoists

Applications

Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Features

UL/CSA recognized and CE certified. CEUHM/VEUHM motors are Super-E with NEMA Premium efficiency, CUHM/VUHM motors are EPAct efficiency and all are inverter-ready. 143-145TY and 143-145TCY frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors. 56-140 frames have low profile F3 top-mounted conduit box. 3 year warranty on Super-E motors.

Tech Specs.
Brand	Baldor Premium Efficient Super-E Unit Handling Motor
Model Number	VEUHM3546
HP	1
RPM	1800
Volts	208-230/460
"C" Dim	13.23
Frame	56C
Full Load Amps	1.5
Full Load Efficiency	85.5
Apx. Wt. (lb)	42
EISA Status	C
Phase	Three
Motor Mount	Footless
Enclosure	TEFC
Type	Unit Handling Motor
Notes	Three Year Warranty
