U.S. Motors

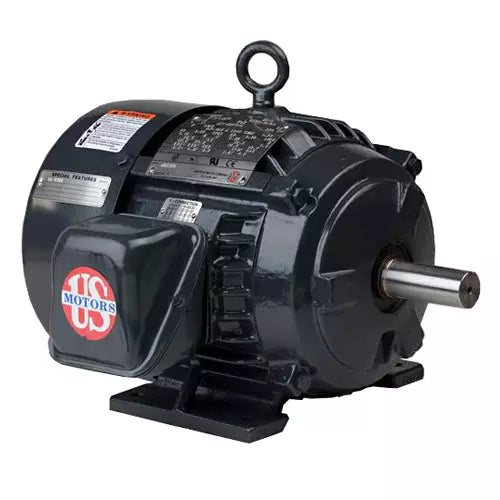

US-NIDEC CW20V2E2 Cooling Tower Motor (20 HP, 256T, TEFC, 1800 RPM)

US-NIDEC CW20V2E2 Cooling Tower Motor (20 HP, 256T, TEFC, 1800 RPM)

CW20V2E2

$2,827.18 USD
$2,827.18 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

US-NIDEC CW20V2E2 Cooling Tower Motor , 256T , TEFC , 20HP , 1800 RPM

Model_Number
GM54
PRODUCT NAME
20 HP - TEFC-IP55 - 1775
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP55
HORSEPOWER
20
KILOWATTS
14.9
POLES
4
NUMBER SPEEDS
1
RPM
1775
RPM 4
1470
RPM 5
1470
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
230
VOLTS
230
VOLTS 4
400
VOLTS 5
200
FRME
256
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F2
MOTOR TYPE
TCI
OPPOSITE END BEARING
6209-2RS-J/C3
SHAFT END BEARING
6309-2RS-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
300
BREAKDOWN TORQUE
256
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
279
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
312.1
NEMA NOMINAL EFFICIENCY
93
FULL LOAD AMPS PRIMARY
47

Ver todos los detalles
