U.S. Motors

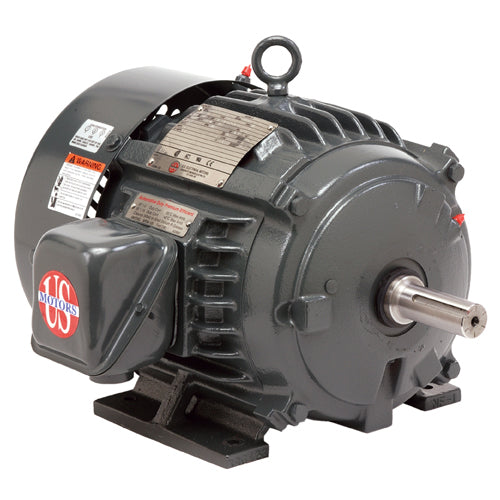

US Motors H10P2D General Purpose Motor (10 HP, TEFC, 1760 RPM)
US Motors H10P2D General Purpose Motor (10 HP, TEFC, 1760 RPM)
No reviews
SKU:H10P2D
Precio habitual
$1,079.04 USD
Precio habitual
Precio de oferta
$1,079.04 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
US Motors H10P2D General Purpose Motor (10 HP, TEFC, 1760 RPM)
| Model_Number: | DE94 |
| Cat # | H10P2D |
| PRODUCT NAME: | 10 HP - TEFC - 1760 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TEFC |
| HORSEPOWER: | 10 |
| KILOWATTS: | 7.5 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1760 |
| RPM 2: | 1760 |
| RPM 3: | 1750 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| FRME : | 215 |
| SHAFT CODE: | T |
| MOUNTING: | HORZ-FOOTED |
| ASSEMBLY POSITION: | F1 |
| MOTOR TYPE: | CTE |
| OPPOSITE END BEARING: | 6208-2Z-J/C3 |
| SHAFT END BEARING: | 6208-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 190 |
| BREAKDOWN TORQUE: | 297 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 232 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | H |
| LOCKED ROTOR AMPS: | 80 |
| NEMA NOMINAL EFFICIENCY: | 91.7 |
| FULL LOAD AMPS PRIMARY: | 26.5-23.9/12 |
| SERVICE FACTOR AMPS PRIMARY: | 0-27.5/13.7 |
