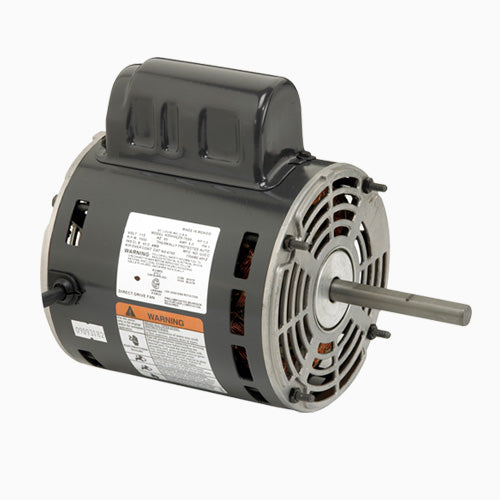

US Motors 4742 Centrifugal Ventilation Direct Drive Blower Motor (0.167 HP, OPEN, 1650 RPM, 115V)
US Motors 4742 Centrifugal Ventilation Direct Drive Blower Motor (0.167 HP, OPEN, 1650 RPM, 115V)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:4742
Precio habitual
$166.17 USD
Precio habitual
$0.00 USD
Precio de oferta
$166.17 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors 4742 Centrifugal Ventilation Direct Drive Blower Motor (0.167 HP, OPEN, 1650 RPM)
- Shaded Pole & Permanent Split Capacitor
- Open Air Over (OAO)
- 5.0", 5.6", & 6.3" Diameter
| Model_Number: | K048FHP3834023B |
| PRODUCT NAME: | .167 HP - OPEN - 1650 |
| PHASETYPE: | 1_PERM SPLIT CAP |
| MOTOR ENCLOSURE: | OPEN |
| HORSEPOWER: | .167 |
| KILOWATTS: | 0.1 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1650 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 |
| VOLTS : | 115 |
| FRME : | 42 |
| SHAFT CODE: | YZ |
| STATOR DIAMETER: | 4.8 |
| STACK: | 0.875 |
| MOUNTING: | STUD |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CW LEAD END |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 7.5 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 9 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 14.36 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 4.552 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | D |
| LOCKED ROTOR AMPS: | 5.39 |
| NEMA NOMINAL EFFICIENCY: | 57 |
| FULL LOAD AMPS PRIMARY: | 2.7 |
| SERVICE FACTOR AMPS PRIMARY: | 2.7 |
