U.S. Motors

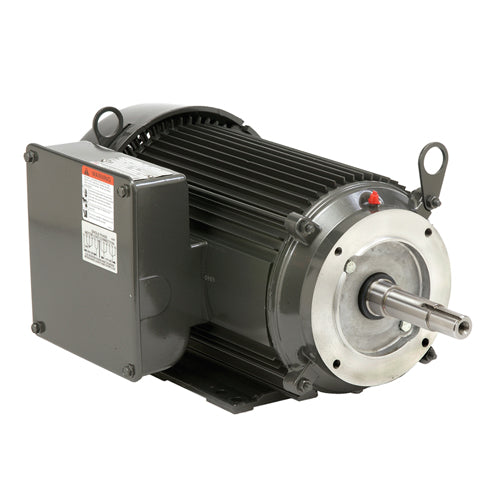

UJ7C1K21M US Motor Close Coupled Pump Motor (7.5 HP, 230V, 1 Phase, 3480 RPM, TEFC)
UJ7C1K21M US Motor Close Coupled Pump Motor (7.5 HP, 230V, 1 Phase, 3480 RPM, TEFC)
No reviews
SKU:UJ7C1K21M
Precio habitual
$1,230.49 USD
Precio habitual
Precio de oferta
$1,230.49 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
UJ7C1K21M US Motor (7.5 HP, 230V, 1 Phase, 3480 RPM, TEFC)
| Model_Number: | G69588 |
| PRODUCT NAME: | 7.5 HP - TE - 3480 |
| PHASETYPE: | 1_PHASE |
| MOTOR ENCLOSURE: | TE |
| HORSEPOWER: | 7.5 |
| POLES: | 2 |
| NUMBER SPEEDS: | 1 |
| RPM: | 3480 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 230 |
| VOLTS : | 230 |
| FRME : | 215 |
| SHAFT CODE: | JM |
| MOTOR TYPE: | UTM4 |
| OPPOSITE END BEARING: | 6205-2Z-J/C3 |
| SHAFT END BEARING: | 6309-2Z-J/C3 |
| AMBIENT: | 40 |
| SERVICE FACTOR: | 1.15 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 133 |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | G |
| NEMA NOMINAL EFFICIENCY: | 83.9 |
| FULL LOAD AMPS PRIMARY: | 30.3 |
Compartir
- Questions about this product? Contact our team!
- Product images may be generic.
