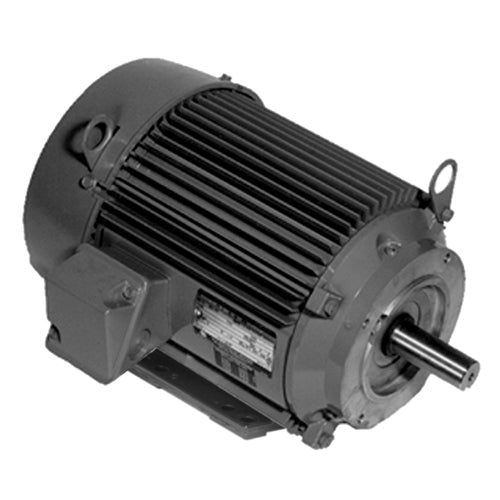

U7P3DCR US Motor General Purpose Motor (7.5 HP, TE, 1180 RPM, Unimount, C-Face, Footless)
U7P3DCR US Motor General Purpose Motor (7.5 HP, TE, 1180 RPM, Unimount, C-Face, Footless)
SKU:U7P3DCR
Precio habitual
$1,726.99 USD
Precio habitual
Precio de oferta
$1,726.99 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
No se pudo cargar la disponibilidad de retiro
U7P3DCR US Motor General Purpose Motor (7.5 HP, TE, 1180 RPM, Unimount, C-Face, Footless)
| CAT # | U7P3DCR |
| Model_Number: | DX54 |
| PRODUCT NAME: | 7.5 HP - TE - 1180 |
| PHASETYPE: | 3_PHASE |
| MOTOR ENCLOSURE: | TE |
| HORSEPOWER: | 7.5 |
| KILOWATTS: | 5.6 |
| POLES: | 6 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1180 |
| RPM 2: | 1180 |
| RPM 3: | 1175 |
| RPM 4: | 975 |
| RPM 5: | 975 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230/460 |
| VOLTS : | 460 |
| VOLTS 2: | 230 |
| VOLTS 3: | 208 |
| VOLTS 4: | 380 |
| VOLTS 5: | 190 |
| FRME : | 254 |
| SHAFT CODE: | TC |
| MOUNTING: | HORZ-FOOTLESS |
| ASSEMBLY POSITION: | NA |
| MOTOR TYPE: | UTEF |
| OPPOSITE END BEARING: | 6207-2Z-J/C3 |
| SHAFT END BEARING: | 6309-2Z-J/C3 |
| AMBIENT: | 40 |
| ROTATION: | DUAL |
| SERVICE FACTOR: | 1.25 |
| STARTCAPMFD: | N\A |
| SHIPPING WEIGHT: | 180 |
| BREAKDOWN TORQUE: | 293 |
| BREAKDOWN TORQUE UOM: | PERCENT OF FLT |
| LOCKED ROTOR TORQUE: | 206 |
| LOCKED ROTOR TORQUE UOM: | PERCENT OF FLT |
| INSULATION CLASS: | F |
| KVA CODE LETTER: | G |
| LOCKED ROTOR AMPS: | 60.8 |
| NEMA NOMINAL EFFICIENCY: | 91 |
| FULL LOAD AMPS PRIMARY: | 20.6-19/9.5 |
| SERVICE FACTOR AMPS PRIMARY: | 0-23.1/11.6 |
