U.S. Motors

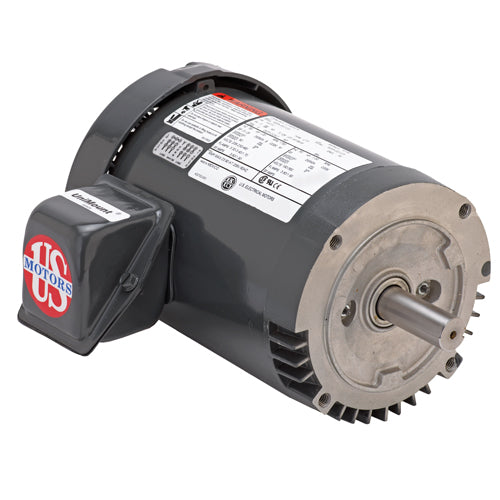

U32P2GFCR U.S. Motors General Purpose Steel Edge Motor (1-1/2 HP, 1800 RPM, 575V, Three Phase)

U32P2GFCR U.S. Motors General Purpose Steel Edge Motor (1-1/2 HP, 1800 RPM, 575V, Three Phase)

U32P2GFCR

$352.51 USD
$352.51 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors U32P2GFCR, STEEL EDGE , 1-1/2 HP, 1800 RPM, 575 , Three Phase, 56C Frame,

Applications
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Shaft Slinger On Pulley End

Specifications

Brand
U.S. Motors
Catalog Number
U32P2GFCR
Type
General Purpose Motor
Series
STEEL EDGE
HP
1-1/2
RPM
1800
Voltage
575
Phase
Three
Frame
56C
SF
1 .25
"C" Dim. (inches)
13 .1
Ship Wt. (lbs)
30
NEMA Nom. Eff.
86 .5
Full Load Amps
1 .7
Enclosure
TEFC
Mounting
C
Hertz
60
Material
Rolled Steel
Insulation
Class F
Base
Footless
Notes
See support documents

Support Documents (pdf)
