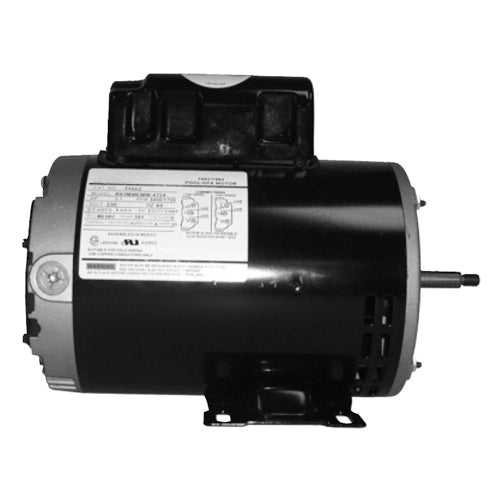

TT502 Nidec US Motor AQUA-SHIELD Thru-Bolt Pool & Spa Motor (1.5 HP, ODP, 3450 RPM, 230V, 60 Hz)

TT502 Nidec US Motor AQUA-SHIELD Thru-Bolt Pool & Spa Motor (1.5 HP, ODP, 3450 RPM, 230V, 60 Hz)

👁️ [COUNT] People are currently viewing this product.

TT502

$318.08 USD
$0.00 USD $318.08 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

TT502 Nidec US Motor AQUA-SHIELD Thru-Bolt Pool & Spa Motor (1.5 HP, ODP, 3450 RPM, 230V, 60 Hz)



Model_Number
R063EMW4724013J
PRODUCT NAME
1.5 HP - ODP - 3450
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.5
HORSEPOWER 2
0.188
POLES
2
POLES 2
4
NUMBER SPEEDS
2
RPM
3450
RPM 2
1725
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
STATOR DIAMETER
6.3
STACK
2.25
MOUNTING
THRU BOLT W/BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
30
RUNCAPVOLTS
370
SHIPPING WEIGHT
31
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
102.5
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.823
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
A
LOCKED ROTOR AMPS
37.9
